0717640004

Affinity Medical Technologies - a Molex company

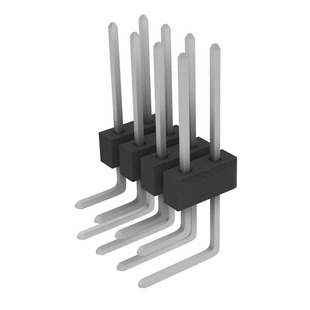

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0717640004
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HDR DUAL 4POS .100 R/A TIN
Datasheets:	0717640004.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	86483 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 86483 pcs

Reference Price (In US Dollars)

1 pcs: $0.389

10 pcs: $0.342

25 pcs: $0.322

50 pcs: $0.308

100 pcs: $0.295

250 pcs: $0.268

500 pcs: $0.241

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.389

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0717640004

Part Number	0717640004	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HDR DUAL 4POS .100 R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	86483 pcs	Data sheet	0717640004.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid 71764	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	071764-0004 071764-0004-E 0717640004-E 71764-0004 71764-0004-E 717640004 717640004-E WM27104 WM27104-ND WM50028-04
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Thermoplastic
Insulation Height	0.200" (5.08mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.110" (2.79mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	150.0µin (3.81µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
