Affinity Medical Technologies - a Molex company

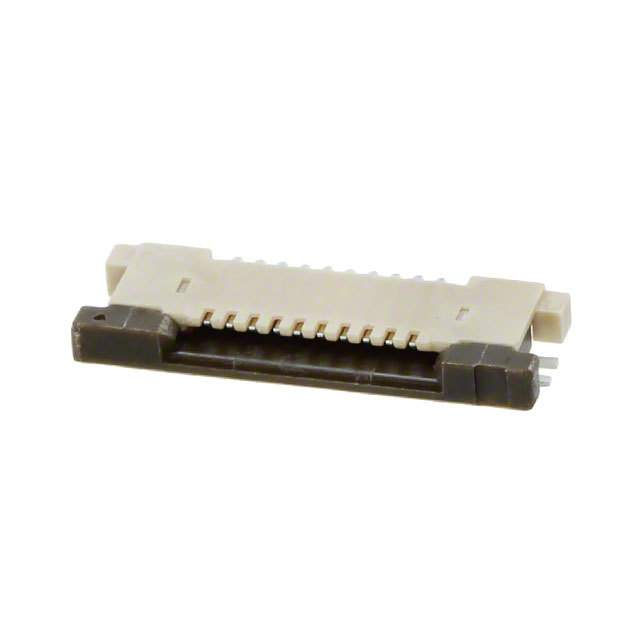

| Part Number | 0545501033 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC TOP 10POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87025 pcs | Data sheet | 1.0545501033.pdf2.0545501033.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | Easy-On 54550 | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | 0054550-1033 054550-1033 0545501033-ND 54550-1033 545501033 WM11103TR |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 10 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Housing Color | White | Height Above Board | 0.047" (1.20mm) |
| Flat Flex Type | FFC, FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 10 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 39.4µin (1.00µm) | Contact Finish | Tin Bismuth |
| Connector/Contact Type | Contacts, Top | Cable End Type | Straight, Tapered |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled | Actuator Color | Brown |
