Affinity Medical Technologies - a Molex company
| Part Number | 0543935181 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

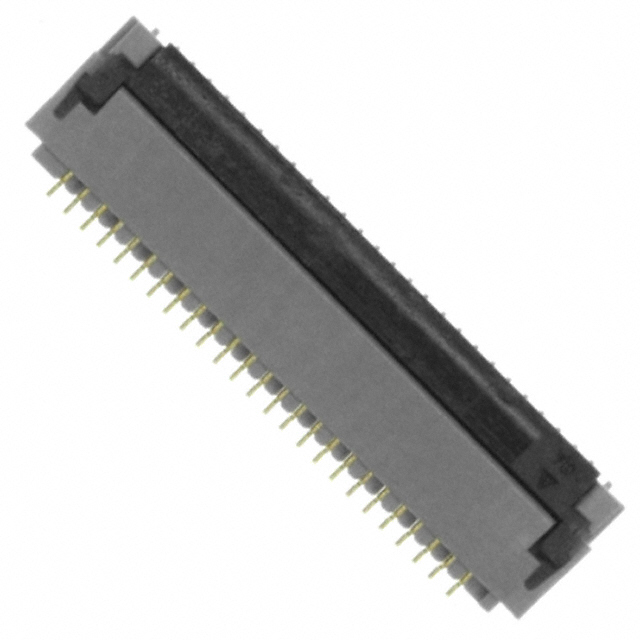

| Description | CONN FPC BOTTOM 51POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5086 pcs | Data sheet | 0543935181.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | Easy-On 54393 | Pitch | 0.012" (0.30mm) |
| Packaging | Bulk | Other Names | 054393-5181 054393-5181-C 0543935181-C 54393-5118 54393-5181 54393-5181-C 54393-5181-ND 543935181 543935181-C WM2228 |
| Operating Temperature | -20°C ~ 85°C | Number of Positions | 51 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | - |
| Height Above Board | 0.077" (1.95mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 51 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 8.00µin (0.203µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | - |
