0528522670

Affinity Medical Technologies - a Molex company

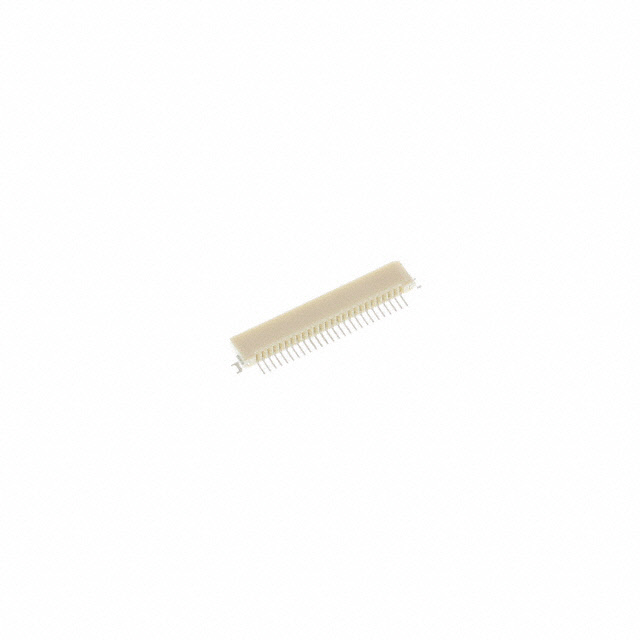

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0528522670
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 26POS 1.00MM R/A
Datasheets:	0528522670.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	57572 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 57572 pcs

Reference Price (In US Dollars)

1 pcs: $0.614

10 pcs: $0.557

25 pcs: $0.523

50 pcs: $0.50

100 pcs: $0.477

250 pcs: $0.432

500 pcs: $0.398

1000 pcs: $0.341

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.614

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0528522670

Part Number	0528522670	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 26POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	57572 pcs	Data sheet	0528522670.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 52852	Pitch	0.039" (1.00mm)
Packaging	Cut Tape (CT)	Other Names	WM20339CT
Operating Temperature	-20°C ~ 80°C	Number of Positions	26
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyphenylene Sulfide (PPS)
Housing Color	-	Height Above Board	0.122" (3.10mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention
FFC, FCB Thickness	0.30mm	Detailed Description	26 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Bottom	Cable End Type	Straight
Actuator Material	-	Actuator Color	-
