0522071360

Affinity Medical Technologies - a Molex company

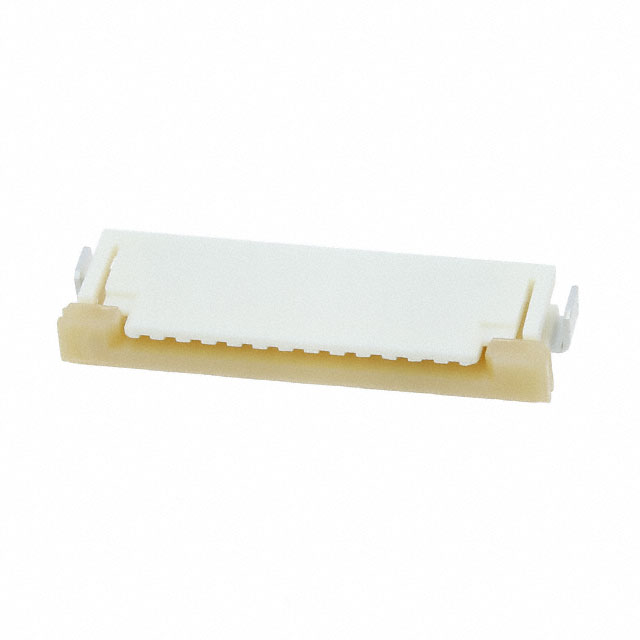

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0522071360
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC TOP 13POS 1MM R/A
Datasheets:	0522071360.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	74581 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 74581 pcs

Reference Price (In US Dollars)

1 pcs: $0.67

10 pcs: $0.608

25 pcs: $0.57

50 pcs: $0.546

100 pcs: $0.521

250 pcs: $0.471

500 pcs: $0.434

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.67

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0522071360

Part Number	0522071360	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC TOP 13POS 1MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74581 pcs	Data sheet	0522071360.pdf
Voltage Rating	125V	Termination	Solder
Series	52207	Pitch	0.039" (1.00mm)
Packaging	Original-Reel®	Other Names	WM10947DKR
Operating Temperature	-30°C ~ 85°C	Number of Positions	13
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA46), Nylon 4/6
Housing Color	-	Height Above Board	0.106" (2.70mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	13 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Top	Cable End Type	Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	-
