0428193233

Affinity Medical Technologies - a Molex company

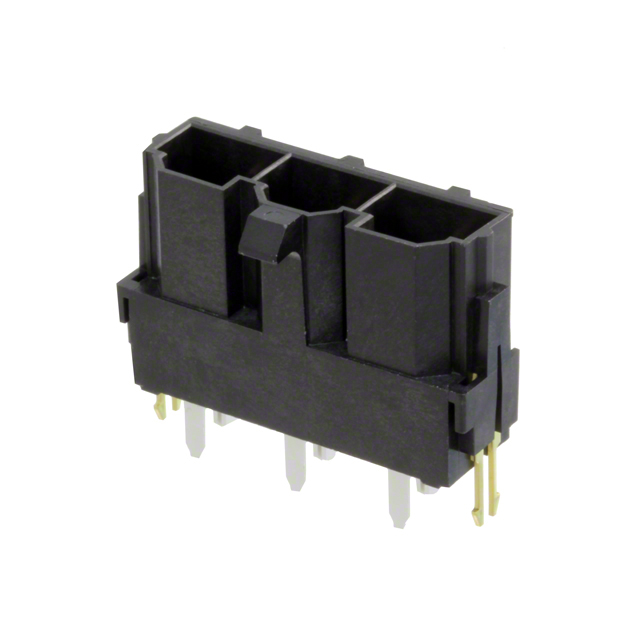

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0428193233
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINIFIT SR HDR VERT 125 CLIP
Datasheets:	1.0428193233.pdf 2.0428193233.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23347 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23347 pcs

Reference Price (In US Dollars)

1 pcs: $2.546

10 pcs: $2.439

324 pcs: $1.803

648 pcs: $1.697

1296 pcs: $1.485

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.546

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0428193233

Part Number	0428193233	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINIFIT SR HDR VERT 125 CLIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23347 pcs	Data sheet	1.0428193233.pdf 2.0428193233.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Sr 42819	Row Spacing - Mating	-
Pitch - Mating	0.394" (10.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0428-19-3233 042819-3233 0428193233-ND 42819-3233 428193233 WM14561
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled	Insulation Height	0.827" (21.00mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 3 position 0.394" (10.00mm)	Current Rating	-
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Copper Zirconium Alloy	Contact Length - Post	0.201" (5.11mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
