0428192223

Affinity Medical Technologies - a Molex company

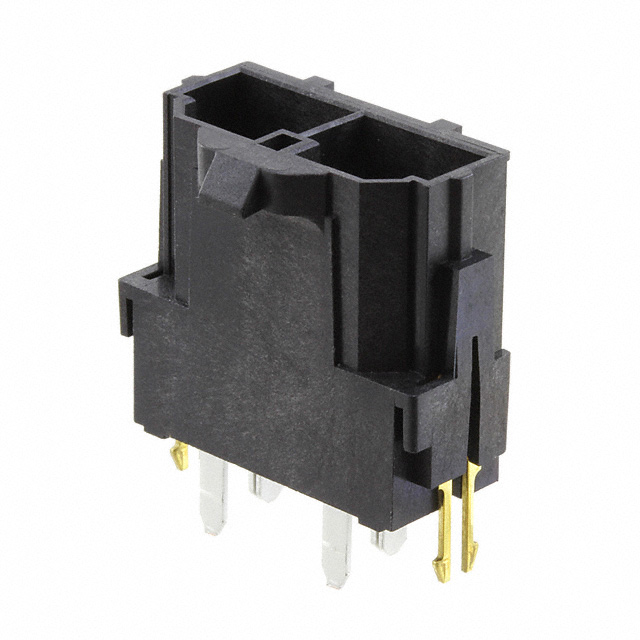

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0428192223
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINIFIT SR HDR VERT 093 CLIP
Datasheets:	1.0428192223.pdf 2.0428192223.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34673 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34673 pcs

Reference Price (In US Dollars)

1 pcs: $1.572

52 pcs: $1.319

104 pcs: $1.256

520 pcs: $1.068

1040 pcs: $0.911

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.572

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0428192223

Part Number	0428192223	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINIFIT SR HDR VERT 093 CLIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34673 pcs	Data sheet	1.0428192223.pdf 2.0428192223.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Sr 42819	Row Spacing - Mating	-
Pitch - Mating	0.394" (10.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0428-19-2223 042819-2223 0428192223-ND 42819-2223 428192223 WM9796
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled	Insulation Height	0.827" (21.00mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 2 position 0.394" (10.00mm)	Current Rating	-
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Copper Zirconium Alloy	Contact Length - Post	0.201" (5.11mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
