0416610002

Affinity Medical Technologies - a Molex company

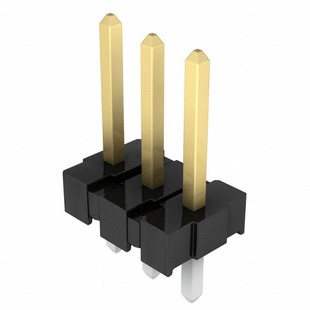

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0416610002
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK 156 HDR ASSY FLAT BKWY 03CKT
Datasheets:	0416610002.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	202083 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 202083 pcs

Reference Price (In US Dollars)

8000 pcs: $0.115

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.115

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0416610002

Part Number	0416610002	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK 156 HDR ASSY FLAT BKWY 03CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	202083 pcs	Data sheet	0416610002.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	KK 41661	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.750" (19.05mm)	Other Names	0416-61-0002 041661-0002 41661-0002 416610002 A-41661-B03A208
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.128" (3.25mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 3 position 0.156" (3.96mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.172" (4.37mm)
Contact Length - Mating	0.450" (11.43mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
