0191300009

Affinity Medical Technologies - a Molex company

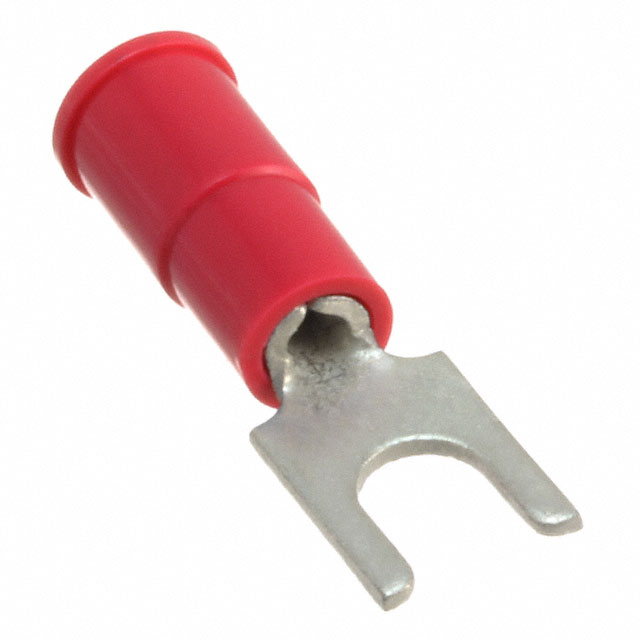

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0191300009
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN SPADE TERM 18-22AWG #6 RED
Datasheets:	1.0191300009.pdf 2.0191300009.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	897885 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 897885 pcs

Reference Price (In US Dollars)

1 pcs: $0.071

10 pcs: $0.067

25 pcs: $0.05

50 pcs: $0.043

100 pcs: $0.041

250 pcs: $0.036

500 pcs: $0.034

1000 pcs: $0.03

2500 pcs: $0.027

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.071

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0191300009

Part Number	0191300009	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN SPADE TERM 18-22AWG #6 RED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	897885 pcs	Data sheet	1.0191300009.pdf 2.0191300009.pdf
Wire Gauge	18-22 AWG	Width - Outer Edges	0.245" (6.22mm)
Tongue Inside Opening	0.146" (3.71mm)	Termination	Crimp
Terminal Type	Standard	Stud/Tab Size	6 Stud
Series	InsulKrimp	Packaging	Bulk
Other Names	019130-0009 0191300009-ND 19130-0009 191300009 A-238-06X WM13766	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Poly-Vinyl Chloride (PVC)
Manufacturer Standard Lead Time	3 Weeks	Length - Termination	0.455" (11.56mm)
Length - Ring Center to Termination	0.207" (5.26mm)	Length - Overall	0.835" (21.20mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Diameter	0.145" (3.68mm)
Insulation	Insulated	Features	-
Detailed Description	Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG	Contact Material	Copper
Contact Finish	Electro-Tin	Color	Red
