0038006293

Affinity Medical Technologies - a Molex company

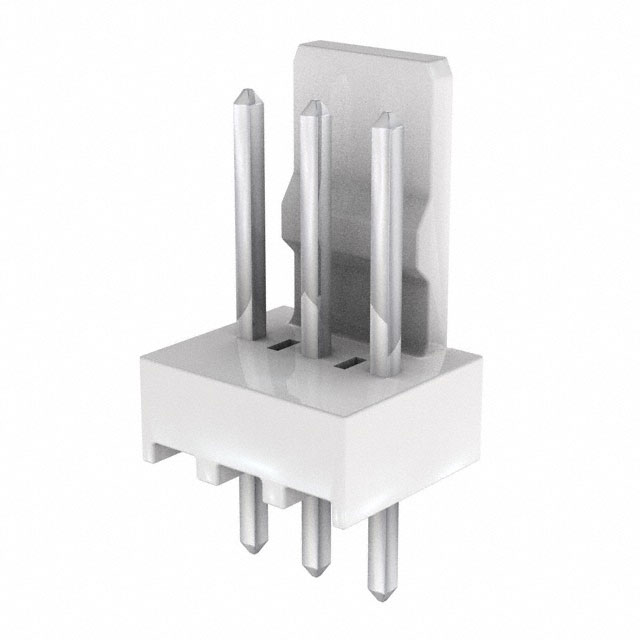

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0038006293
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	2.54MM KK HDR VT VRC FL 5SN 3POS
Datasheets:	0038006293.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	279330 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 279330 pcs

Reference Price (In US Dollars)

1 pcs: $0.16

10 pcs: $0.151

100 pcs: $0.115

500 pcs: $0.10

1000 pcs: $0.083

5000 pcs: $0.073

10000 pcs: $0.068

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.16

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0038006293

Part Number	0038006293	Manufacturer	Affinity Medical Technologies - a Molex company
Description	2.54MM KK HDR VT VRC FL 5SN 3POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	279330 pcs	Data sheet	0038006293.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	KK 6410	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.800" (20.32mm)	Other Names	0038-00-6293 003800-6293 0038006293-ND 38-00-6293 38006293 AE-6410-03C(197) WM19538
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.461" (11.70mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 3 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.394" (10.00mm)
Contact Length - Mating	0.281" (7.15mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
