0022286180

Affinity Medical Technologies - a Molex companyAffinity Medical Technologies - a Molex company

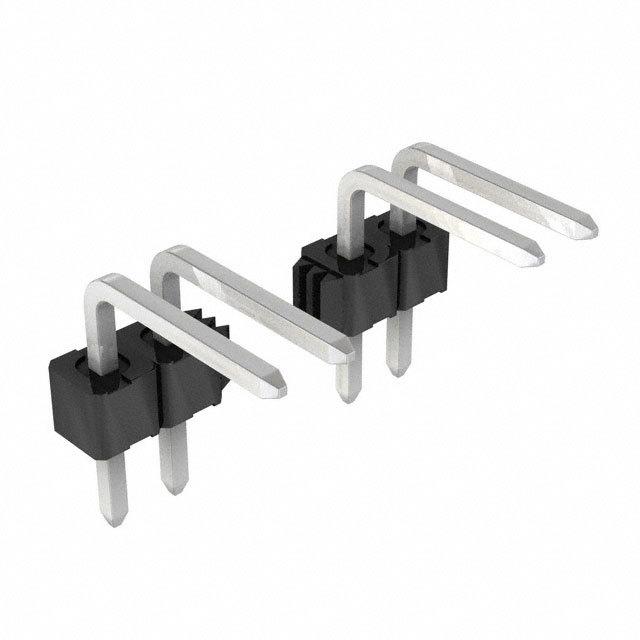

0022286180 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 0022286180
Manufacturer/Brand: Affinity Medical Technologies - a Molex company
Product description KK 100 HDR ASSY RA BKWY 18POS
Datasheets: 1.0022286180.pdf2.0022286180.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 78223 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 78223 pcs
Reference Price (In US Dollars)
1800 pcs
$0.258
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.258

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 0022286180

Part Number 0022286180 Manufacturer Affinity Medical Technologies - a Molex company
Description KK 100 HDR ASSY RA BKWY 18POS Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 78223 pcs Data sheet 1.0022286180.pdf2.0022286180.pdf
Voltage Rating - Termination Solder
Style Board to Board or Cable Shrouding Unshrouded
Series KK 42376 Row Spacing - Mating -
Pitch - Mating 0.100" (2.54mm) Packaging Bulk
Overall Contact Length - Other Names 0022-28-6180
002228-6180
22-28-6180
22286180
42376-0018
Operating Temperature - Number of Rows 1
Number of Positions Loaded All Number of Positions 18
Mounting Type Through Hole, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0 Mated Stacking Heights -
Manufacturer Standard Lead Time 9 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Polyamide (PA), Nylon, Glass Filled Insulation Height 0.090" (2.29mm)
Insulation Color Black Ingress Protection -
Features - Fastening Type Push-Pull
Detailed Description Connector Header Through Hole, Right Angle 18 position 0.100" (2.54mm) Current Rating -
Contact Type Male Pin Contact Shape Square
Contact Material - Contact Length - Post 0.120" (3.05mm)
Contact Length - Mating 0.361" (9.17mm) Contact Finish Thickness - Post 100.0µin (2.54µm)
Contact Finish Thickness - Mating 100.0µin (2.54µm) Contact Finish - Post Tin
Contact Finish - Mating Tin Connector Type Header, Breakaway
Applications Automotive, General Purpose, Medical, Telecommunications
