0015311066

Affinity Medical Technologies - a Molex company

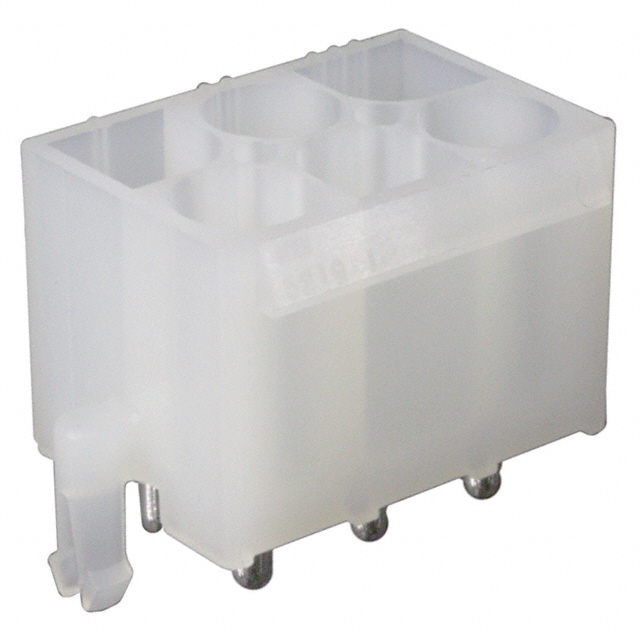

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0015311066
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 6POS .093 VERT TIN
Datasheets:	0015311066.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	83648 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 83648 pcs

Reference Price (In US Dollars)

1 pcs: $0.797

10 pcs: $0.723

100 pcs: $0.62

500 pcs: $0.517

1000 pcs: $0.443

5000 pcs: $0.393

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.797

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0015311066

Part Number	0015311066	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 6POS .093 VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	83648 pcs	Data sheet	0015311066.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	5219	Row Spacing - Mating	0.264" (6.71mm)
Pitch - Mating	0.264" (6.71mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	15-31-1066 15311066 5219-06A WM1039
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.591" (15.00mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 6 position 0.264" (6.71mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Telecommunications
