AWCCA-50N50H50-C02-B

Abracon Corporation

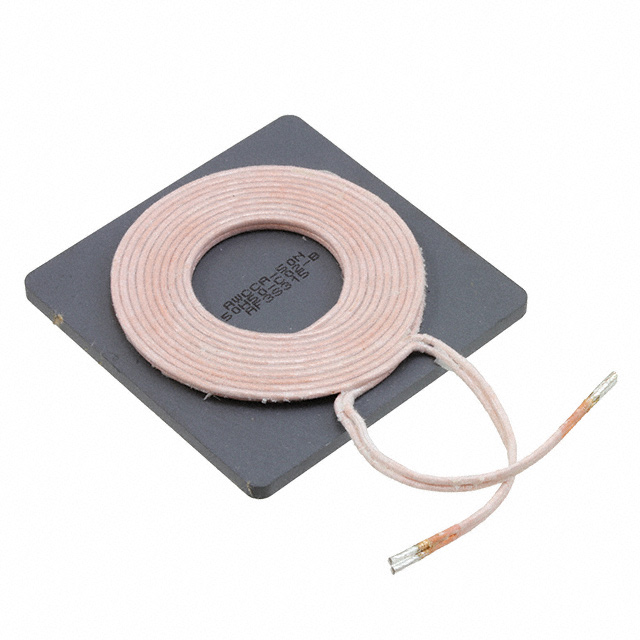

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AWCCA-50N50H50-C02-B
Manufacturer/Brand:	Abracon Corporation
Product description	RX TX 1 COIL 1 LAYER 6.3UH 10.6A
Datasheets:	AWCCA-50N50H50-C02-B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21527 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 21527 pcs

Reference Price (In US Dollars)

1 pcs: $3.008

10 pcs: $2.707

100 pcs: $1.925

500 pcs: $1.805

1000 pcs: $1.685

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.008

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AWCCA-50N50H50-C02-B

Part Number	AWCCA-50N50H50-C02-B	Manufacturer	Abracon Corporation
Description	RX TX 1 COIL 1 LAYER 6.3UH 10.6A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21527 pcs	Data sheet	AWCCA-50N50H50-C02-B.pdf
Type	1 Coil, 1 Layer	Tolerance	±10%
Size / Dimension	1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm)	Series	AWCCA-50N50
Q @ Freq	75 @ 100kHz	Other Names	535-12507
Operating Temperature	-25°C ~ 85°C	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	6.3µH	Function	Receiver, Transmitter
Frequency - Self Resonant	5.7MHz	Detailed Description	1 Coil, 1 Layer 6.3µH Wireless Charging Coil Receiver, Transmitter 19 mOhm
DC Resistance (DCR)	19 mOhm	Current Rating	10.6A
Current - Saturation	40A
