AWHW 14A-0202-T

ASSMANN WSW Components

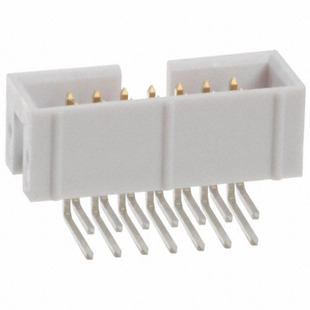

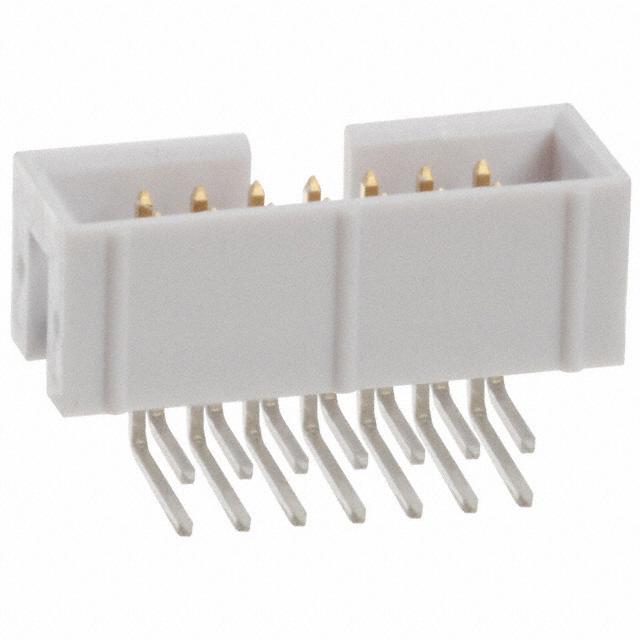

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AWHW 14A-0202-T
Manufacturer/Brand:	ASSMANN WSW Components
Product description	CONN HEADR R/A LO-PRO 14POS GOLD
Datasheets:	AWHW 14A-0202-T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	158032 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 158032 pcs

Reference Price (In US Dollars)

1 pcs: $0.315

10 pcs: $0.278

220 pcs: $0.24

660 pcs: $0.196

1100 pcs: $0.174

5060 pcs: $0.153

10120 pcs: $0.145

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.315

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AWHW 14A-0202-T

Part Number	AWHW 14A-0202-T	Manufacturer	ASSMANN WSW Components
Description	CONN HEADR R/A LO-PRO 14POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	158032 pcs	Data sheet	AWHW 14A-0202-T.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	-	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	AE11194 AWHW-14A-0202-T AWHW-14A-0202-T-ND
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.352" (8.95mm)
Insulation Color	Gray	Ingress Protection	-
Features	Keying Slot	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.124" (3.15mm)
Contact Length - Mating	0.224" (5.70mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	Flash	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
