AR20-HZL/01-TT

ASSMANN WSW Components

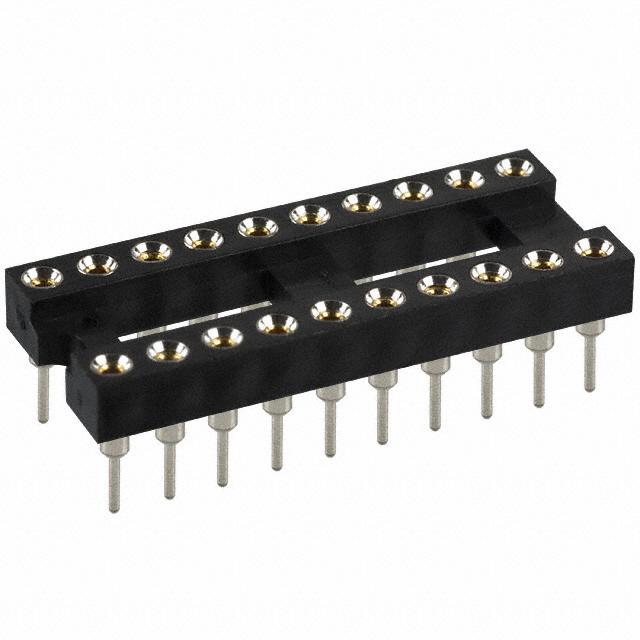

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AR20-HZL/01-TT
Manufacturer/Brand:	ASSMANN WSW Components
Product description	CONN IC DIP SOCKET 20POS GOLD
Datasheets:	AR20-HZL/01-TT.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	5655 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5655 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AR20-HZL/01-TT

Part Number	AR20-HZL/01-TT	Manufacturer	ASSMANN WSW Components
Description	CONN IC DIP SOCKET 20POS GOLD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5655 pcs	Data sheet	AR20-HZL/01-TT.pdf
Type	DIP, 0.3" (7.62mm) Row Spacing	Termination Post Length	-
Termination	Solder	Series	-
Pitch - Post	0.100" (2.54mm)	Pitch - Mating	0.100" (2.54mm)
Packaging	Tube	Other Names	AE7304 AR20-HZL/01-T
Operating Temperature	-40°C ~ 105°C	Number of Positions or Pins (Grid)	20 (2 x 10)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Housing Material	Thermoplastic, Polyester	Features	Open Frame
Current Rating	3A	Contact Resistance	4 mOhm
Contact Material - Post	Beryllium Copper	Contact Material - Mating	Beryllium Copper
Contact Finish Thickness - Post	200.0µin (5.08µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
