AR 24 HZL/01/7-TT

ASSMANN WSW Components

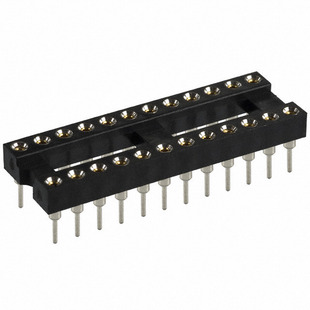

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AR 24 HZL/01/7-TT
Manufacturer/Brand:	ASSMANN WSW Components
Product description	CONN IC DIP SOCKET 24POS GOLD
Datasheets:	AR 24 HZL/01/7-TT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	84548 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 84548 pcs

Reference Price (In US Dollars)

1 pcs: $0.888

19 pcs: $0.805

38 pcs: $0.755

57 pcs: $0.722

114 pcs: $0.69

266 pcs: $0.624

513 pcs: $0.575

1007 pcs: $0.493

2508 pcs: $0.46

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.888

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AR 24 HZL/01/7-TT

Part Number	AR 24 HZL/01/7-TT	Manufacturer	ASSMANN WSW Components
Description	CONN IC DIP SOCKET 24POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	84548 pcs	Data sheet	AR 24 HZL/01/7-TT.pdf
Type	DIP, 0.3" (7.62mm) Row Spacing	Termination Post Length	-
Termination	Solder	Series	-
Pitch - Post	0.100" (2.54mm)	Pitch - Mating	0.100" (2.54mm)
Packaging	Tube	Other Names	24 HZL/01-7-TT AE10027 AR 24 HZL/01-7-TT AR 24-HZL/01/7-TT AR-24-HZL/01/7-TT AR24-HZL/7/01-TT-R AR24HZL701TTR
Operating Temperature	-40°C ~ 105°C	Number of Positions or Pins (Grid)	24 (2 x 12)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Manufacturer Standard Lead Time	20 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Thermoplastic, Polyester
Features	Open Frame	Current Rating	3A
Contact Resistance	4 mOhm	Contact Material - Post	Beryllium Copper
Contact Material - Mating	Beryllium Copper	Contact Finish Thickness - Post	200.0µin (5.08µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold
