CM6296-255

API Delevan

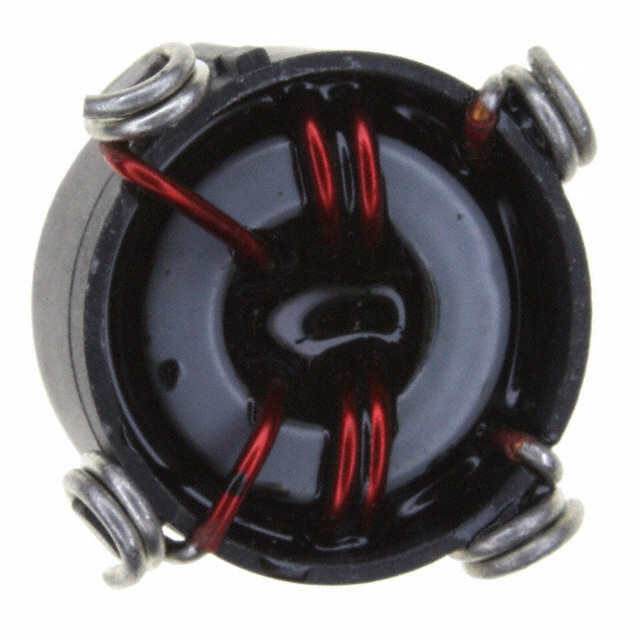

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CM6296-255
Manufacturer/Brand:	API Delevan
Product description	CMC 2.5MH 2.2A 2LN SMD
Datasheets:	CM6296-255.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	13620 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13620 pcs

Reference Price (In US Dollars)

400 pcs: $2.749

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.749

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CM6296-255

Part Number	CM6296-255	Manufacturer	API Delevan
Description	CMC 2.5MH 2.2A 2LN SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	13620 pcs	Data sheet	CM6296-255.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	1.058" L x 1.058" W (26.87mm x 26.87mm)	Series	CM6296
Ratings	-	Packaging	Bulk
Package / Case	Horizontal, 4 PC Pad	Other Names	CM6296-255 BULK 25
Operating Temperature	-55°C ~ 125°C	Number of Lines	2
Mounting Type	Surface Mount	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Inductance @ Frequency	2.5mH @ 1kHz
Height (Max)	0.423" (10.74mm)	Filter Type	-
Features	-	Detailed Description	2.5mH @ 1kHz 2 Line Common Mode Choke Surface Mount 2.2A DCR 162 mOhm
DC Resistance (DCR) (Max)	162 mOhm	Current Rating (Max)	2.2A
Approvals	-
