3ESH9-15.0

APEM Inc.

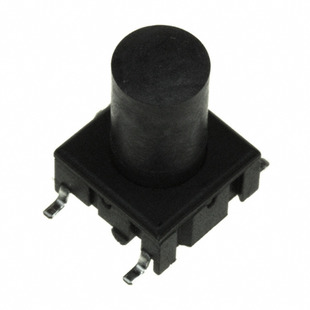

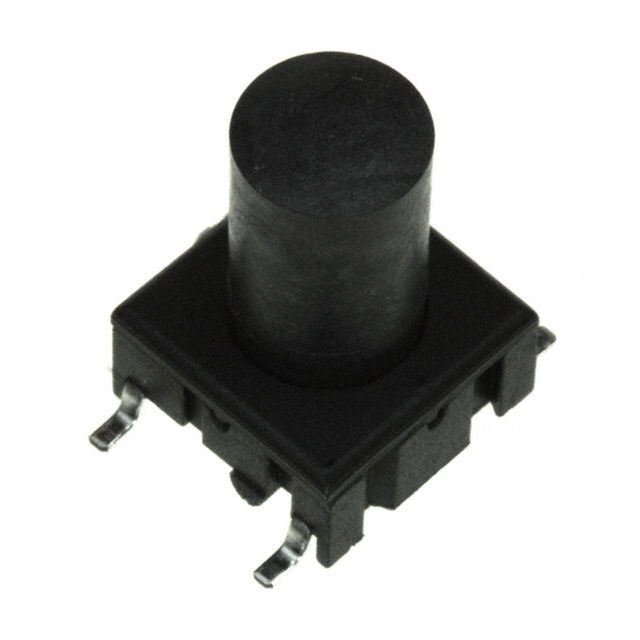

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3ESH9-15.0
Manufacturer/Brand:	APEM Inc.
Product description	SWITCH TACTILE SPST-NO 0.05A 24V
Datasheets:	1.3ESH9-15.0.pdf 2.3ESH9-15.0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	54989 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 54989 pcs

Reference Price (In US Dollars)

1 pcs: $1.191

10 pcs: $1.145

25 pcs: $1.054

50 pcs: $0.916

100 pcs: $0.87

300 pcs: $0.847

500 pcs: $0.825

1000 pcs: $0.641

5000 pcs: $0.595

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.191

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3ESH9-15.0

Part Number	3ESH9-15.0	Manufacturer	APEM Inc.
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54989 pcs	Data sheet	1.3ESH9-15.0.pdf 2.3ESH9-15.0.pdf
Termination Style	Gull Wing	Switch Travel	1.00mm
Switch Function	Off-Mom	Series	Multimec® 3
Packaging	Tube	Outline	10.10mm x 10.10mm
Other Names	3ESH9150 679-2219	Operating Temperature	-40°C ~ 160°C
Operating Force	300gf	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000,000 Cycles
Manufacturer Standard Lead Time	29 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Sealed - Flux Protection	Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount
Contact Rating @ Voltage	0.05A @ 24VDC	Circuit	SPST-NO
Actuator Type	Standard	Actuator Orientation	Top Actuated
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	15.00mm
