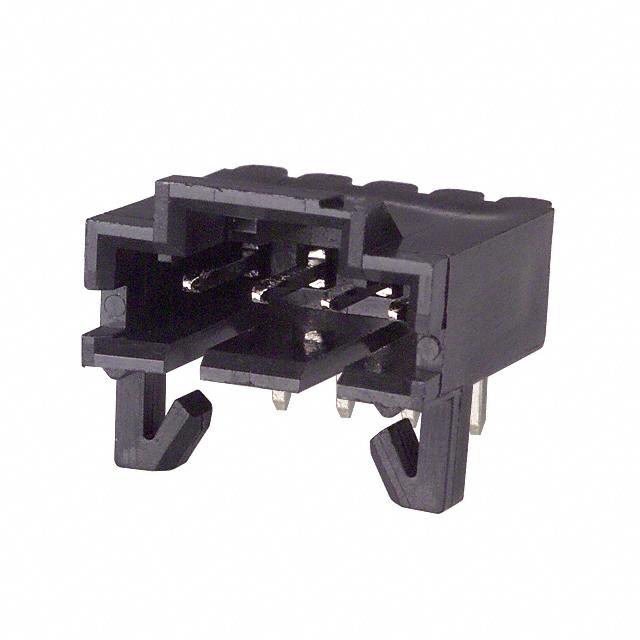

TE Connectivity AMP Connectors
| Part Number | 103672-3 | Manufacturer | TE Connectivity AMP Connectors |
|---|---|---|---|
| Description | CONN HEADER RTANG 4POS PCB TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 139360 pcs | Data sheet | 103672-3.pdf |
| Voltage - DC Spark Over (Nom) | Brass | Type Attributes | - |
| Termination | Solder | Style | Board to Board or Cable |
| Stacking Direction | Male Pin | Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square | Series | AMPMODU MTE |
| Row Spacing - Mating | Shrouded - 4 Wall | RoHS Status | Tube |
| Ripple Current - Low Frequency | Automotive, General Purpose, Medical, Telecommunications | Pitch - Connector | - |
| Overall Contact Length | 0.130" (3.30mm) | Other Names | 103672-3-ND A28582 |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 1 |
| Number of Positions | 4 | Number of Contacts | 100µin (2.54µm) |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Standard Lead Time | 23 Weeks | Manufacturer Part Number | 103672-3 |
| Length - Post (Mating) | - | Insulation Material | Tin-Lead |
| Insulation Height | - | Features | Board Lock, Keying Slot |
| Expanded Description | 4 Positions Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin-Lead | Description | CONN HEADER RTANG 4POS PCB TIN |
| Current Rating | 3A | Current - Max/Contact | Latch Holder |
| Contact Length - Post | 0.230" (5.84mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Thermoplastic | Contact Finish Thickness - Mating | Tin-Lead |
| Contact Finish - Post | 100µin (2.54µm) | Contact Finish - Mating | 0.200" (5.08mm) |
| Connector Type | Header | Actual Diameter | Black |
