STK57FU394AG-E

AMI Semiconductor / ON Semiconductor

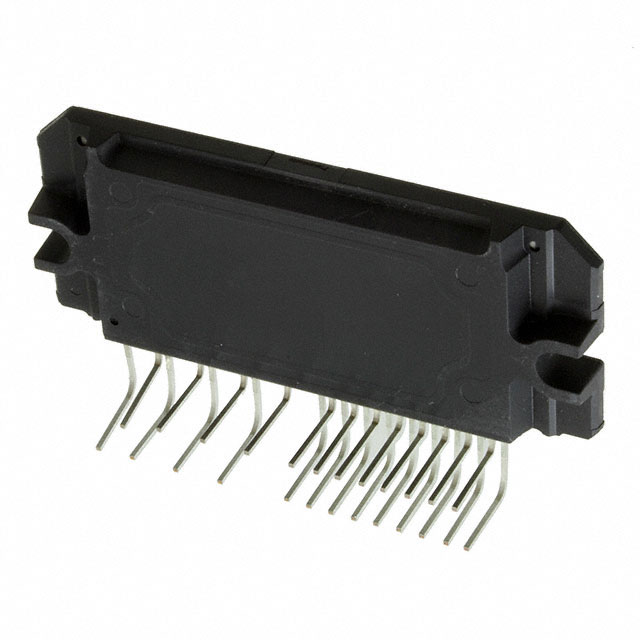

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STK57FU394AG-E
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	2-IN-1 PFC AND INVERTER IPM
Datasheets:	STK57FU394AG-E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8381 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8381 pcs

Reference Price (In US Dollars)

1 pcs: $5.774

16 pcs: $5.306

104 pcs: $4.482

504 pcs: $3.987

1000 pcs: $3.657

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.774

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STK57FU394AG-E

Part Number	STK57FU394AG-E	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	2-IN-1 PFC AND INVERTER IPM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8381 pcs	Data sheet	STK57FU394AG-E.pdf
Voltage - Supply	12.5 V ~ 17.5 V	Voltage - Load	400V (Max)
Technology	IGBT	Supplier Device Package	35-SIP/SIP2A-3
Series	-	Rds On (Typ)	-
Packaging	Tray	Package / Case	35-SSIP, 25 Leads
Output Configuration	Half Bridge (3)	Other Names	STK57FU394AG-EOS
Operating Temperature	150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Load Type	Inductive
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Logic
Features	Bootstrap Circuit	Fault Protection	Current Limiting, UVLO
Detailed Description	Half Bridge (3) Driver AC Motors, DC Motors, General Purpose IGBT 35-SIP/SIP2A-3	Current - Peak Output	30A
Current - Output / Channel	15A	Applications	AC Motors, DC Motors, General Purpose
