NDTL03N150CG

AMI Semiconductor / ON Semiconductor

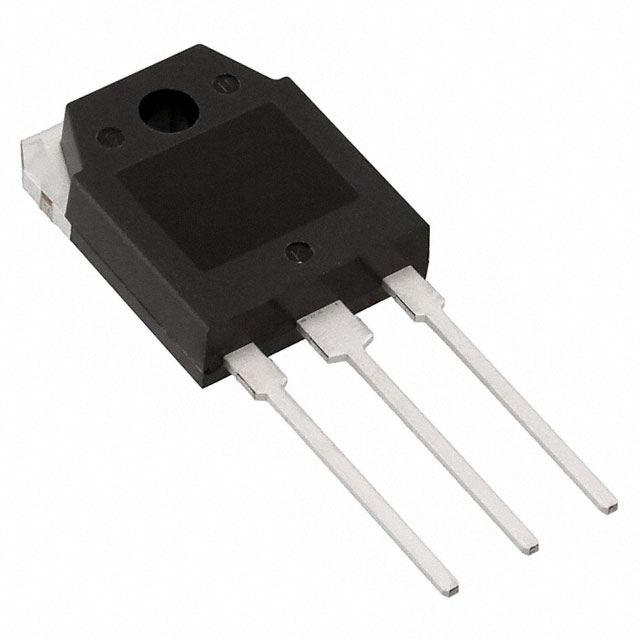

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NDTL03N150CG
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MOSFET N-CH 1500V 2.5A TO3P3
Datasheets:	NDTL03N150CG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	54299 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 54299 pcs

Reference Price (In US Dollars)

1 pcs: $1.124

30 pcs: $0.955

120 pcs: $0.827

510 pcs: $0.704

1020 pcs: $0.594

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.124

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NDTL03N150CG

Part Number	NDTL03N150CG	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MOSFET N-CH 1500V 2.5A TO3P3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54299 pcs	Data sheet	NDTL03N150CG.pdf
Vgs(th) (Max) @ Id	-	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-3P(L)
Series	-	Rds On (Max) @ Id, Vgs	10.5 Ohm @ 1.25A, 10V
Power Dissipation (Max)	2.5W (Ta), 140W (Tc)	Packaging	Tube
Package / Case	TO-3PL	Other Names	NDTL03N150CGOS
Operating Temperature	150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	650pF @ 30V
Gate Charge (Qg) (Max) @ Vgs	34nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	1500V	Detailed Description	N-Channel 1500V 2.5A (Ta) 2.5W (Ta), 140W (Tc) Through Hole TO-3P(L)
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
