NCP5339MNTXG

AMI Semiconductor / ON Semiconductor

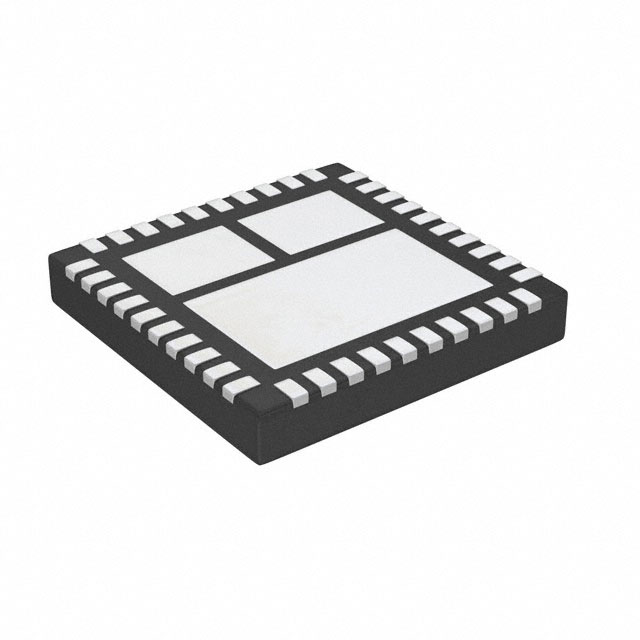

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NCP5339MNTXG
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC MOSFET DVR HI/LO SIDE 40QFN
Datasheets:	NCP5339MNTXG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	85902 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 85902 pcs

Reference Price (In US Dollars)

2500 pcs: $0.442

5000 pcs: $0.425

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.442

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NCP5339MNTXG

Part Number	NCP5339MNTXG	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC MOSFET DVR HI/LO SIDE 40QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	85902 pcs	Data sheet	NCP5339MNTXG.pdf
Voltage - Supply	4.5 V ~ 5.5 V	Voltage - Load	4.5 V ~ 16 V
Technology	NMOS	Supplier Device Package	40-QFN (6x6)
Series	-	Rds On (Typ)	-
Packaging	Tape & Reel (TR)	Package / Case	40-VFQFN Exposed Pad
Output Configuration	Half Bridge	Other Names	NCP5339MNTXG-ND NCP5339MNTXGOS NCP5339MNTXGOSTR
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	30 Weeks
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	PWM	Features	Bootstrap Circuit
Fault Protection	Over Temperature, UVLO	Detailed Description	Half Bridge Driver DC-DC Converters NMOS 40-QFN (6x6)
Current - Peak Output	80A	Current - Output / Channel	50A
Applications	DC-DC Converters
