NCP45540IMNTWG-H

AMI Semiconductor / ON Semiconductor

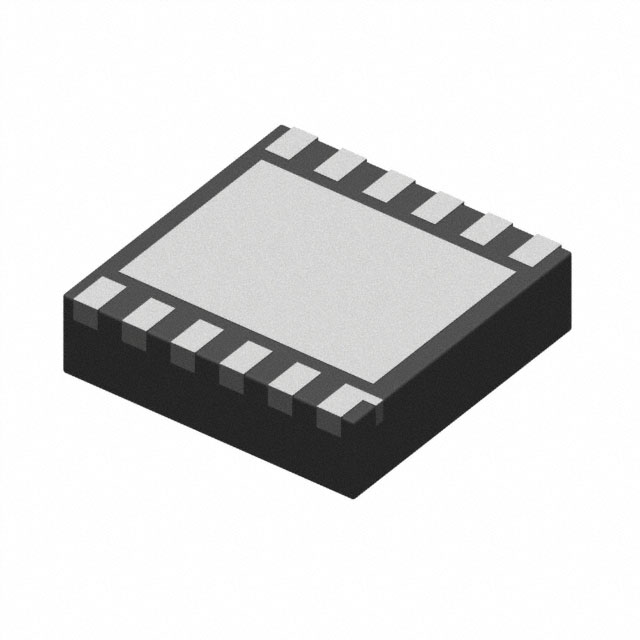

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NCP45540IMNTWG-H
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC LOAD SWITCH ACT-HI 20A 12DFN
Datasheets:	NCP45540IMNTWG-H.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	111280 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 111280 pcs

Reference Price (In US Dollars)

1 pcs: $0.41

10 pcs: $0.366

100 pcs: $0.285

500 pcs: $0.235

1000 pcs: $0.186

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.41

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NCP45540IMNTWG-H

Part Number	NCP45540IMNTWG-H	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC LOAD SWITCH ACT-HI 20A 12DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	111280 pcs	Data sheet	NCP45540IMNTWG-H.pdf
Voltage - Supply (Vcc/Vdd)	3 V ~ 5.5 V	Voltage - Load	0.5 V ~ 13.5 V
Switch Type	General Purpose	Supplier Device Package	12-DFN (3x3)
Series	ecoSWITCH™	Rds On (Typ)	4.8 mOhm
Ratio - Input:Output	1:1	Packaging	Cut Tape (CT)
Package / Case	12-VFDFN Exposed Pad	Output Type	N-Channel
Output Configuration	High Side	Other Names	NCP45540IMNTWG-HOSCT
Operating Temperature	-40°C ~ 85°C (TA)	Number of Outputs	1
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	20 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	On/Off
Input Type	Non-Inverting	Features	Power Good, Slew Rate Controlled
Fault Protection	Over Temperature, UVLO	Current - Output (Max)	20A
