NCP1396BDR2G

AMI Semiconductor / ON Semiconductor

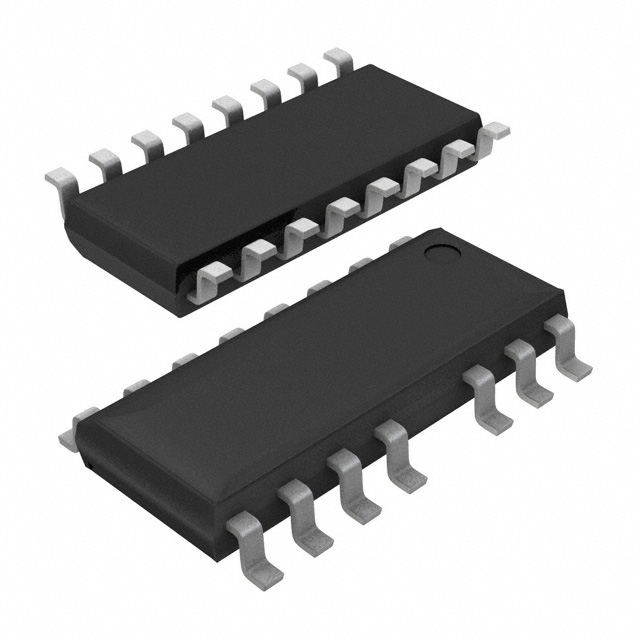

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NCP1396BDR2G
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC REG CTRLR ISO PWM VM 16-SOIC
Datasheets:	NCP1396BDR2G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	106410 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 106410 pcs

Reference Price (In US Dollars)

2500 pcs: $0.242

5000 pcs: $0.23

12500 pcs: $0.221

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.242

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NCP1396BDR2G

Part Number	NCP1396BDR2G	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC REG CTRLR ISO PWM VM 16-SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	106410 pcs	Data sheet	NCP1396BDR2G.pdf
Voltage - Supply (Vcc/Vdd)	9.5 V ~ 20 V	Voltage - Start Up	10.5V
Voltage - Breakdown	-	Topology	Half-Bridge
Supplier Device Package	16-SOIC	Series	-
Packaging	Tape & Reel (TR)	Package / Case	16-SOIC (0.154", 3.90mm Width), 15 Leads
Output Isolation	Isolated	Other Names	NCP1396BDR2GOS NCP1396BDR2GOS-ND NCP1396BDR2GOSTR
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	33 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	No
Frequency - Switching	50kHz ~ 500kHz	Fault Protection	Over Temperature
Duty Cycle	50%	Detailed Description	Converter Offline Half-Bridge Topology 50kHz ~ 500kHz 16-SOIC
Control Features	Frequency Control, Soft Start	Base Part Number	NCP1396
