NCP1014APL100R2G

AMI Semiconductor / ON Semiconductor

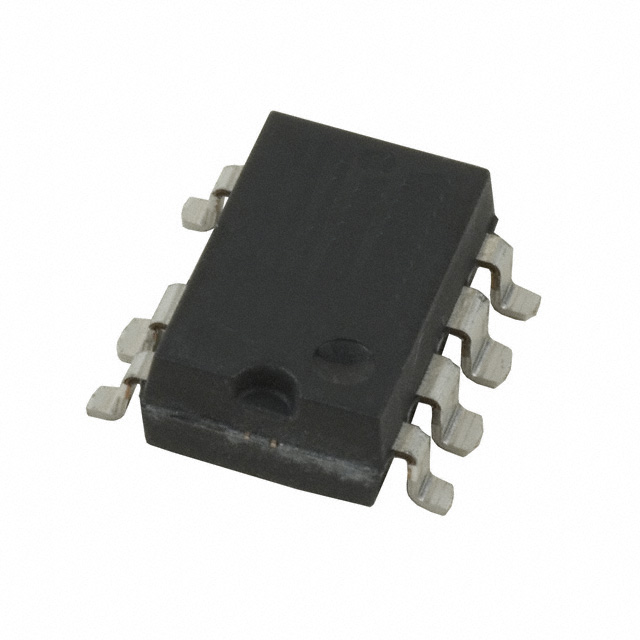

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NCP1014APL100R2G
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC CTRLR/MOSFET 100KHZ 7DIPGW
Datasheets:	NCP1014APL100R2G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5576 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5576 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NCP1014APL100R2G

Part Number	NCP1014APL100R2G	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC CTRLR/MOSFET 100KHZ 7DIPGW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5576 pcs	Data sheet	NCP1014APL100R2G.pdf
Voltage - Supply (Vcc/Vdd)	8.5 V ~ 10 V	Voltage - Breakdown	700V
Topology	Flyback	Supplier Device Package	7-PDIP, Gullwing
Series	-	Power (Watts)	19W
Packaging	Tape & Reel (TR)	Package / Case	8-SMD (7 Leads), Gull Wing
Output Isolation	Isolated	Other Names	NCP1014APL100R2G-ND NCP1014APL100R2GOSTR
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency - Switching	100kHz
Fault Protection	Over Load, Over Temperature, Over Voltage	Duty Cycle	67%
Detailed Description	Converter Offline Flyback Topology 100kHz 7-PDIP, Gullwing	Control Features	-
Base Part Number	NCP1014
