HMHA2801CR1V

AMI Semiconductor / ON Semiconductor

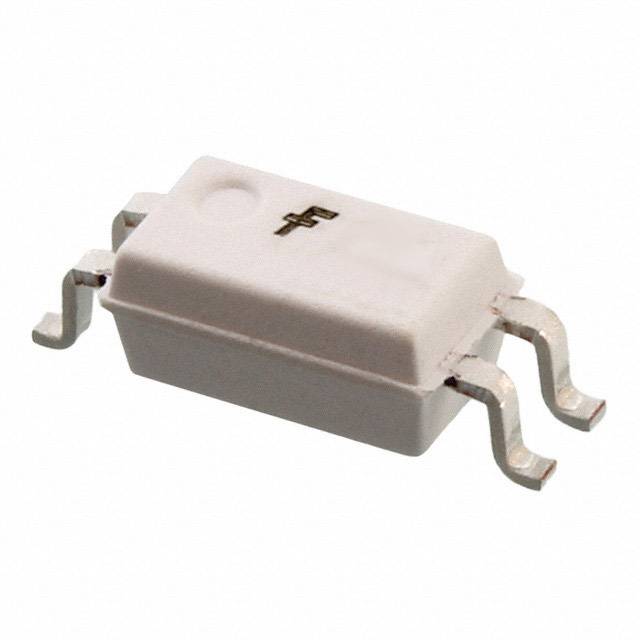

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HMHA2801CR1V
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	OPTOISO 3.75KV TRANSISTOR 4SMD
Datasheets:	HMHA2801CR1V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4233 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4233 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HMHA2801CR1V

Part Number	HMHA2801CR1V	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISO 3.75KV TRANSISTOR 4SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4233 pcs	Data sheet	HMHA2801CR1V.pdf
Voltage - Output (Max)	80V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.3V (Max)	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-Mini-Flat
Series	-	Rise / Fall Time (Typ)	3µs, 3µs
Packaging	Tape & Reel (TR)	Package / Case	4-SOIC (0.173", 4.40mm Width)
Output Type	Transistor	Operating Temperature	-55°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-Mini-Flat
Current Transfer Ratio (Min)	200% @ 5mA	Current Transfer Ratio (Max)	400% @ 5mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
