AMI Semiconductor / ON Semiconductor
| Part Number | HCPL2601SD | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 2.5KV OPN COLLECTOR 8SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63835 pcs | Data sheet | HCPL2601SD.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V | Voltage - Isolation | 2500Vrms |
| Voltage - Forward (Vf) (Typ) | 1.4V | Supplier Device Package | 8-SMD |
| Series | - | Rise / Fall Time (Typ) | 50ns, 12ns |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns | Packaging | Tape & Reel (TR) |

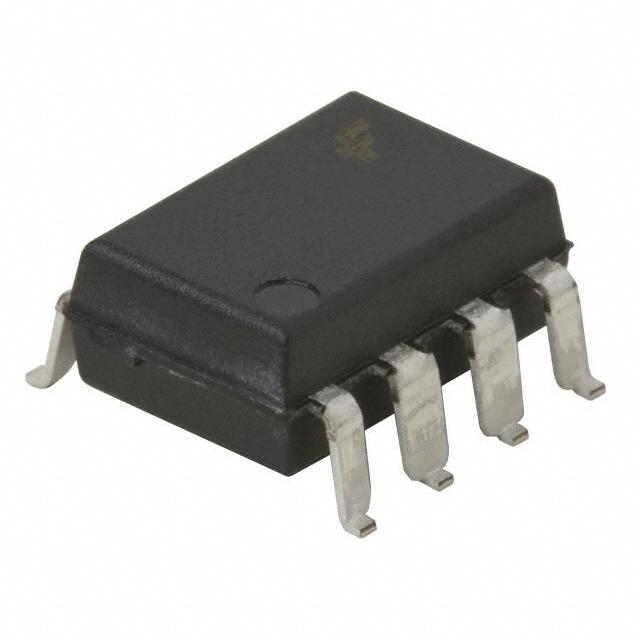

| Package / Case | 8-SMD, Gull Wing | Output Type | Open Collector |
| Other Names | HCPL-2601SD HCPL2601SD-ND HCPL2601SDTR |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 1 Channel 5kV/µs CMTI 8-SMD |
| Data Rate | 10Mbps | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50mA | Common Mode Transient Immunity (Min) | 5kV/µs |
