AMI Semiconductor / ON Semiconductor

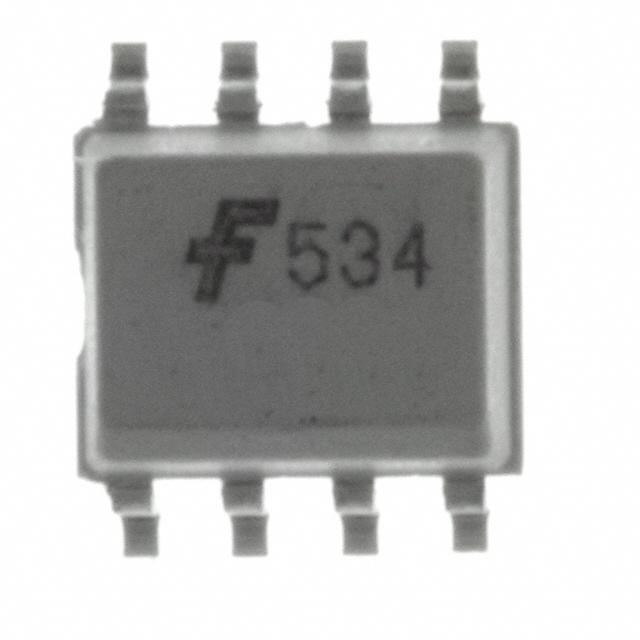

| Part Number | HCPL0534R1 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOCOUPLR TRANS 2CHAN HS 8SOIC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5644 pcs | Data sheet | HCPL0534R1.pdf |
| Voltage - Output (Max) | 20V | Voltage - Isolation | 2500Vrms |
| Voltage - Forward (Vf) (Typ) | 1.45V | Vce Saturation (Max) | - |
| Turn On / Turn Off Time (Typ) | 450ns, 300ns | Supplier Device Package | 8-SO Tall |
| Series | - | Rise / Fall Time (Typ) | - |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Output Type | Transistor | Other Names | HCPL0534R1-ND HCPL0534R1_NL HCPL0534R1_NLTR HCPL0534R1_NLTR-ND HCPL0534R1FS HCPL0534R1FS-ND HCPL0534R1TR |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 2500Vrms 2 Channel 8-SO Tall | Current Transfer Ratio (Min) | 15% @ 16mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 8mA |
| Current - DC Forward (If) (Max) | 25mA |
