H11L2SVM

AMI Semiconductor / ON Semiconductor

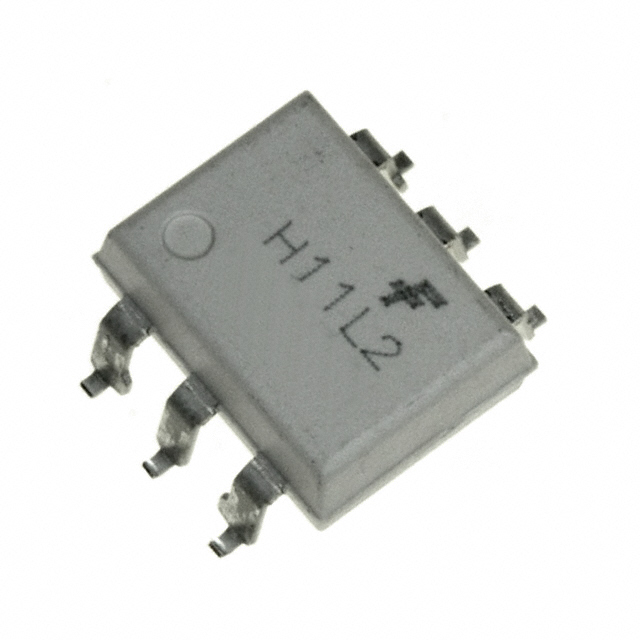

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H11L2SVM
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	OPTOISO 4.17KV OPN COLL 6SMD
Datasheets:	H11L2SVM.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	110343 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 110343 pcs

Reference Price (In US Dollars)

1 pcs: $0.573

10 pcs: $0.465

100 pcs: $0.322

500 pcs: $0.243

1000 pcs: $0.20

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.573

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H11L2SVM

Part Number	H11L2SVM	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISO 4.17KV OPN COLL 6SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	110343 pcs	Data sheet	H11L2SVM.pdf
Voltage - Supply	3 V ~ 15 V	Voltage - Isolation	4170Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Supplier Device Package	6-SMD
Series	-	Rise / Fall Time (Typ)	100ns, 100ns
Propagation Delay tpLH / tpHL (Max)	4µs, 4µs	Packaging	Tube
Package / Case	6-SMD, Gull Wing	Output Type	Open Collector
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inputs - Side 1/Side 2	1/0	Input Type	DC
Detailed Description	Logic Output Optoisolator 1MHz Open Collector 4170Vrms 1 Channel 6-SMD	Data Rate	1MHz
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	30mA
Common Mode Transient Immunity (Min)	-
