FSL306LRLX

AMI Semiconductor / ON Semiconductor

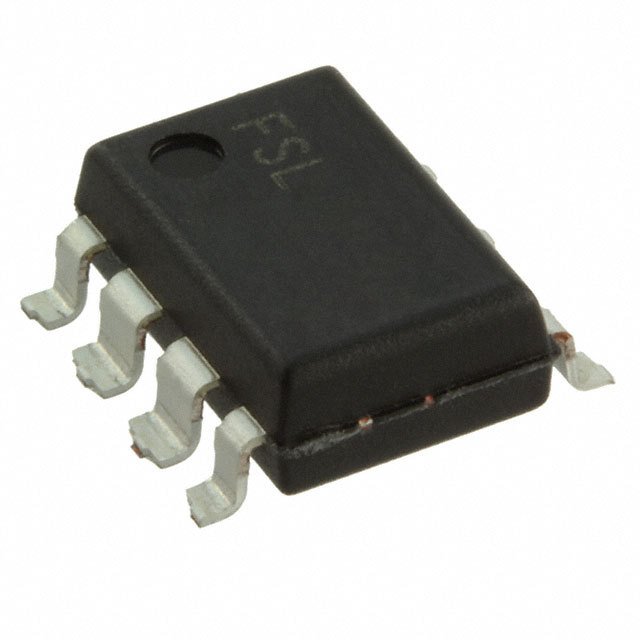

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FSL306LRLX
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC PWM/SENSEFET SMPS 7SOP
Datasheets:	FSL306LRLX.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	159292 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 159292 pcs

Reference Price (In US Dollars)

1000 pcs: $0.172

2000 pcs: $0.16

5000 pcs: $0.152

10000 pcs: $0.146

25000 pcs: $0.142

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.172

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FSL306LRLX

Part Number	FSL306LRLX	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC PWM/SENSEFET SMPS 7SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	159292 pcs	Data sheet	FSL306LRLX.pdf
Voltage - Supply (Vcc/Vdd)	7 V ~ 26 V	Voltage - Start Up	8V
Voltage - Breakdown	650V	Topology	Buck, Flyback
Supplier Device Package	7-LSOP	Series	-
Power (Watts)	7W	Packaging	Tape & Reel (TR)
Package / Case	8-SMD (7 Leads), Gull Wing	Output Isolation	Non-Isolated
Other Names	FSL306LRLXTR	Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	Yes
Frequency - Switching	50kHz	Fault Protection	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
Duty Cycle	-	Detailed Description	Converter Offline Buck, Flyback Topology 50kHz 7-LSOP
Control Features	-
