FOD817B3SD

AMI Semiconductor / ON Semiconductor

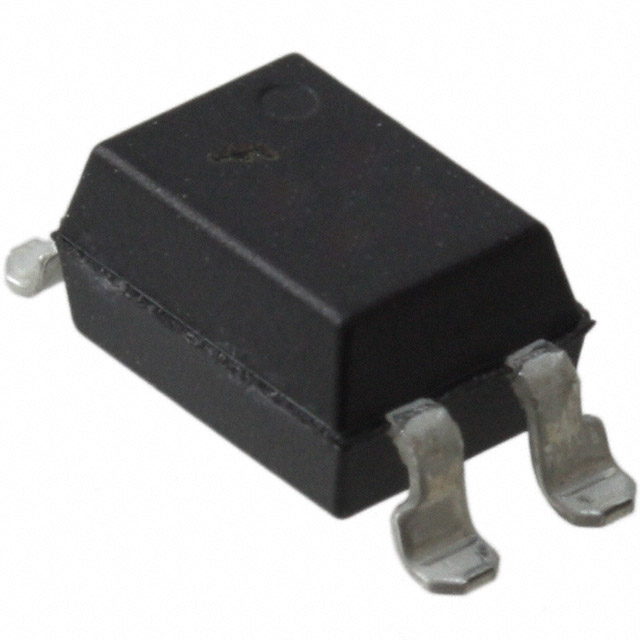

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FOD817B3SD
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	OPTOISOLATOR 5KV TRANSISTOR 4SMD
Datasheets:	FOD817B3SD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	479896 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 479896 pcs

Reference Price (In US Dollars)

1000 pcs: $0.058

2000 pcs: $0.053

5000 pcs: $0.048

10000 pcs: $0.045

25000 pcs: $0.044

50000 pcs: $0.042

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.058

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FOD817B3SD

Part Number	FOD817B3SD	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISOLATOR 5KV TRANSISTOR 4SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	479896 pcs	Data sheet	FOD817B3SD.pdf
Voltage - Output (Max)	70V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	200mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-SMD
Series	-	Rise / Fall Time (Typ)	4µs, 3µs
Packaging	Tape & Reel (TR)	Package / Case	4-SMD, Gull Wing
Output Type	Transistor	Other Names	FOD817B3SD-ND FOD817B3SDTR
Operating Temperature	-55°C ~ 110°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Current Transfer Ratio (Min)	130% @ 5mA	Current Transfer Ratio (Max)	260% @ 5mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
