FDP036N10A

AMI Semiconductor / ON Semiconductor

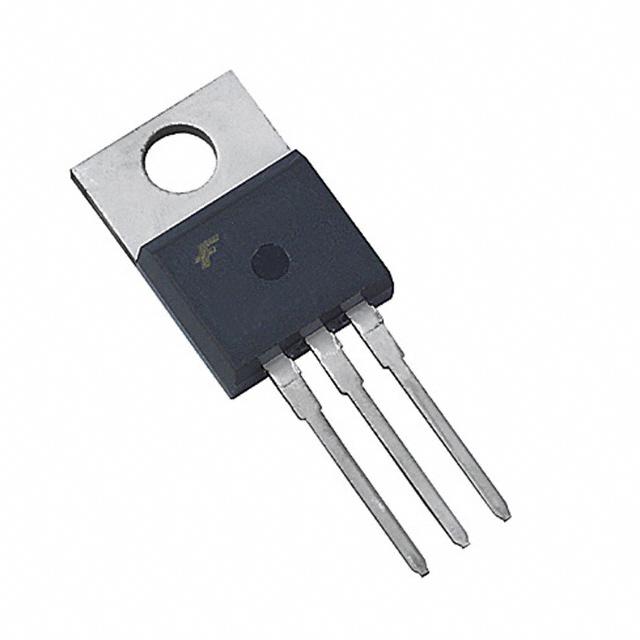

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FDP036N10A
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MOSFET N-CH 100V TO-220AB-3
Datasheets:	1.FDP036N10A.pdf 2.FDP036N10A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	44524 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 44524 pcs

Reference Price (In US Dollars)

1 pcs: $1.71

10 pcs: $1.527

100 pcs: $1.252

800 pcs: $0.916

1600 pcs: $0.855

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.71

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FDP036N10A

Part Number	FDP036N10A	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MOSFET N-CH 100V TO-220AB-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44524 pcs	Data sheet	1.FDP036N10A.pdf 2.FDP036N10A.pdf
Vgs(th) (Max) @ Id	4V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-220-3
Series	PowerTrench®	Rds On (Max) @ Id, Vgs	3.6 mOhm @ 75A, 10V
Power Dissipation (Max)	333W (Tc)	Packaging	Tube
Package / Case	TO-220-3	Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	40 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	7295pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	116nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	100V
Detailed Description	N-Channel 100V 120A (Tc) 333W (Tc) Through Hole TO-220-3	Current - Continuous Drain (Id) @ 25°C	120A (Tc)
