AMI Semiconductor / ON Semiconductor

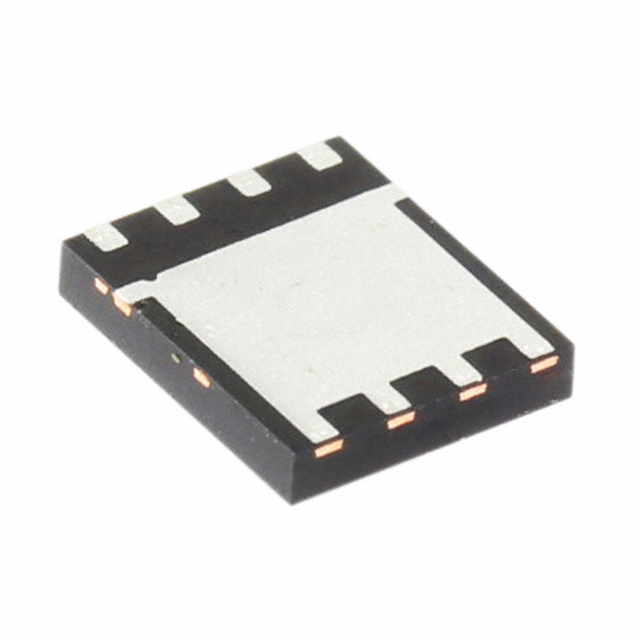

| Part Number | FDMS86152 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 100V 14A POWER56 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45264 pcs | Data sheet | FDMS86152.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | Power56 |
| Series | PowerTrench® | Rds On (Max) @ Id, Vgs | 6 mOhm @ 14A, 10V |
| Power Dissipation (Max) | 2.7W (Ta), 125W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN | Other Names | FDMS86152-ND FDMS86152TR |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 39 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 3370pF @ 50V |
| Gate Charge (Qg) (Max) @ Vgs | 50nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Drain to Source Voltage (Vdss) | 100V | Detailed Description | N-Channel 100V 14A (Ta), 45A (Tc) 2.7W (Ta), 125W (Tc) Surface Mount Power56 |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta), 45A (Tc) |
