AMI Semiconductor / ON Semiconductor
| Part Number | FDMC7672 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 30V 8-MLP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 107724 pcs | Data sheet | FDMC7672.pdf |
| Vgs(th) (Max) @ Id | 3V @ 250µA | Vgs (Max) | ±20V |

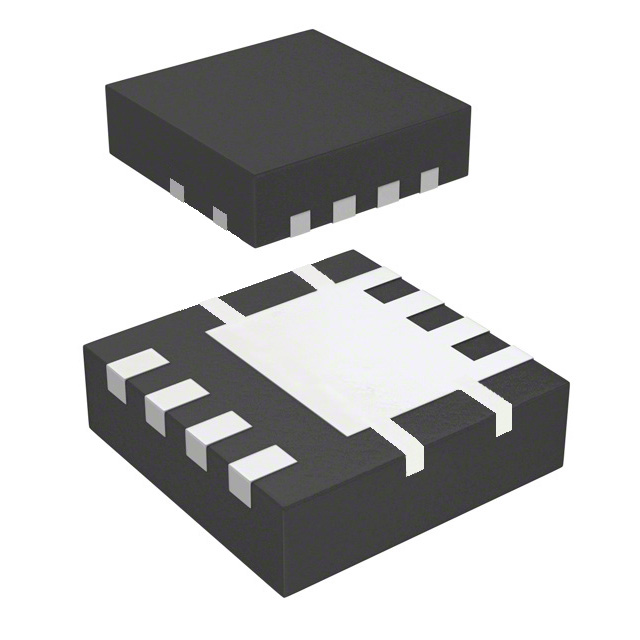

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-MLP (3.3x3.3) |
| Series | PowerTrench®, SyncFET™ | Rds On (Max) @ Id, Vgs | 5.7 mOhm @ 16.9A, 10V |
| Power Dissipation (Max) | 2.3W (Ta), 33W (Tc) | Packaging | Original-Reel® |
| Package / Case | 8-PowerWDFN | Other Names | FDMC7672DKR |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 39 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 3890pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 57nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 16.9A (Ta), 20A (Tc) 2.3W (Ta), 33W (Tc) Surface Mount 8-MLP (3.3x3.3) |
| Current - Continuous Drain (Id) @ 25°C | 16.9A (Ta), 20A (Tc) |
