AMI Semiconductor / ON Semiconductor
| Part Number | FDMC6688P | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET P-CH 20V POWER33 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123156 pcs | Data sheet | FDMC6688P.pdf |
| Vgs(th) (Max) @ Id | 1V @ 250µA | Vgs (Max) | ±8V |

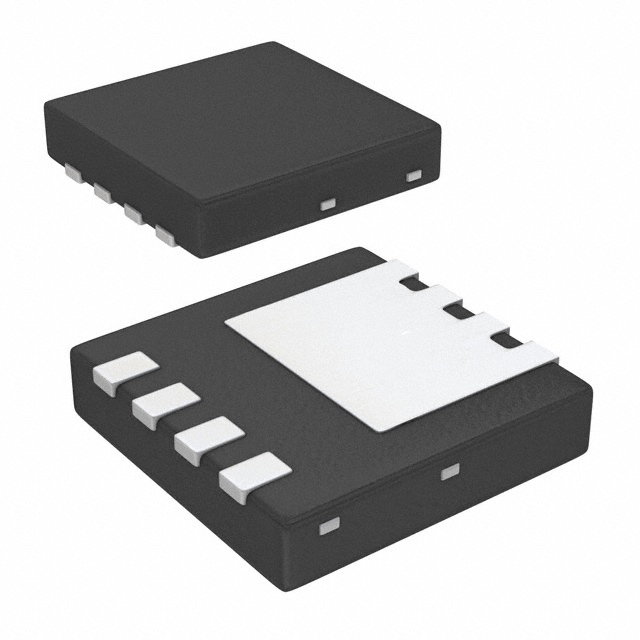

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-PQFN (3.3x3.3), Power33 |
| Series | PowerTrench® | Rds On (Max) @ Id, Vgs | 6.5 mOhm @ 14A, 4.5V |
| Power Dissipation (Max) | 2.3W (Ta), 30W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN | Other Names | FDMC6688PTR |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 7435pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 61nC @ 4.5V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | P-Channel 20V 14A (Ta), 56A (Tc) 2.3W (Ta), 30W (Tc) Surface Mount 8-PQFN (3.3x3.3), Power33 |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta), 56A (Tc) |
