AMI Semiconductor / ON Semiconductor
| Part Number | FDBS09H04A-F085A | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH SMART SWITCH TO263-7 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4593 pcs | Data sheet | FDBS09H04A-F085A.pdf |
| Voltage - Supply (Vcc/Vdd) | Not Required | Voltage - Load | 5.5 V ~ 38 V |

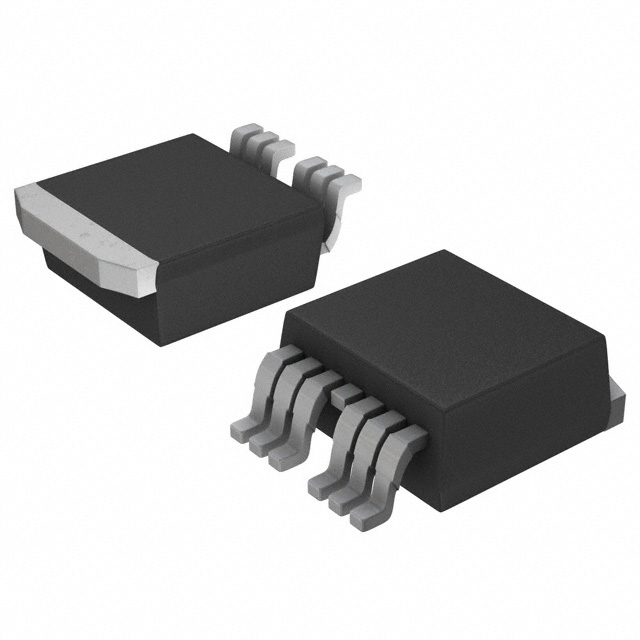

| Switch Type | General Purpose | Supplier Device Package | TO-263-7 |
| Series | Automotive, AEC-Q100 | Rds On (Typ) | 5.5 mOhm |
| Ratio - Input:Output | 1:1 | Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | Output Type | N-Channel |
| Output Configuration | High Side | Other Names | FDBS09H04A-F085ATR FDBS09H04A_F085A FDBS09H04A_F085ATR FDBS09H04A_F085ATR-ND FDBS09H04AF085A |
| Operating Temperature | -40°C ~ 150°C (TJ) | Number of Outputs | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | On/Off | Input Type | Non-Inverting |
| Features | - | Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO |
| Current - Output (Max) | 12A |
