FAN7601GX

AMI Semiconductor / ON Semiconductor

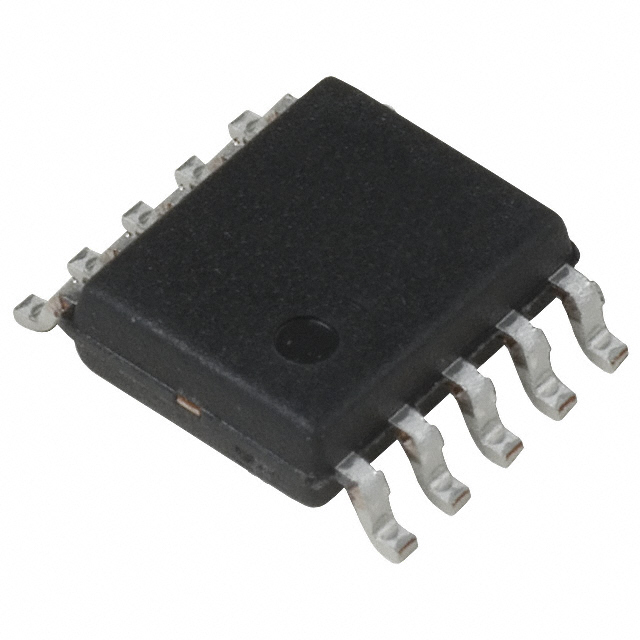

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FAN7601GX
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC PWM CTLR GREEN MODE 10SSOP
Datasheets:	FAN7601GX.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4107 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4107 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FAN7601GX

Part Number	FAN7601GX	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC PWM CTLR GREEN MODE 10SSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4107 pcs	Data sheet	FAN7601GX.pdf
Voltage - Supply (Vcc/Vdd)	8 V ~ 20 V	Voltage - Start Up	12V
Voltage - Breakdown	-	Topology	Flyback
Supplier Device Package	10-SSOP	Series	-
Packaging	Cut Tape (CT)	Package / Case	10-SOP (0.154", 3.90mm Width)
Output Isolation	-	Other Names	FAN7601GX_NLCT FAN7601GX_NLCT-ND FAN7601GXCT
Operating Temperature	-25°C ~ 125°C (TA)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency - Switching	Up to 300kHz
Fault Protection	Over Temperature, Over Voltage	Duty Cycle	95%
Detailed Description	Converter Offline Flyback Topology Up to 300kHz 10-SSOP	Control Features	Frequency Control, Soft Start
Base Part Number	FAN7601
