CAT3606HV4-T2

AMI Semiconductor / ON Semiconductor

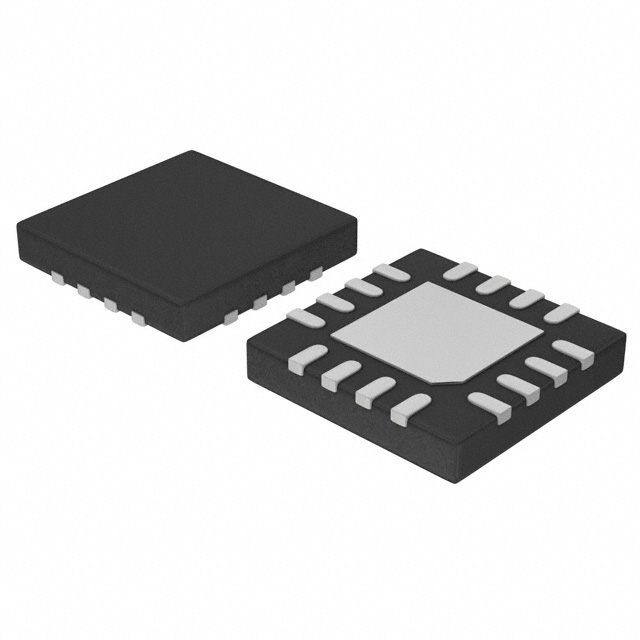

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CAT3606HV4-T2
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC LED DRIVER RGLTR DIM 16TQFN
Datasheets:	CAT3606HV4-T2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4600 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4600 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CAT3606HV4-T2

Part Number	CAT3606HV4-T2	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC LED DRIVER RGLTR DIM 16TQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4600 pcs	Data sheet	CAT3606HV4-T2.pdf
Voltage - Supply (Min)	3V	Voltage - Supply (Max)	5.5V
Voltage - Output	-	Type	DC DC Regulator
Topology	Switched Capacitor (Charge Pump)	Supplier Device Package	16-TQFN (4x4)
Series	-	Packaging	Cut Tape (CT)
Package / Case	16-WQFN Exposed Pad	Other Names	CAT3606HV4-T2CT CAT3606HV4T2
Operating Temperature	-40°C ~ 85°C (TA)	Number of Outputs	6
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	Yes
Frequency	1MHz	Dimming	Analog, PWM
Detailed Description	LED Driver IC 6 Output DC DC Regulator Switched Capacitor (Charge Pump) Analog, PWM Dimming 30mA 16-TQFN (4x4)	Current - Output / Channel	30mA
Base Part Number	CAT3606	Applications	Backlight
