LT8315HFE#PBF

ADI (Analog Devices, Inc.)

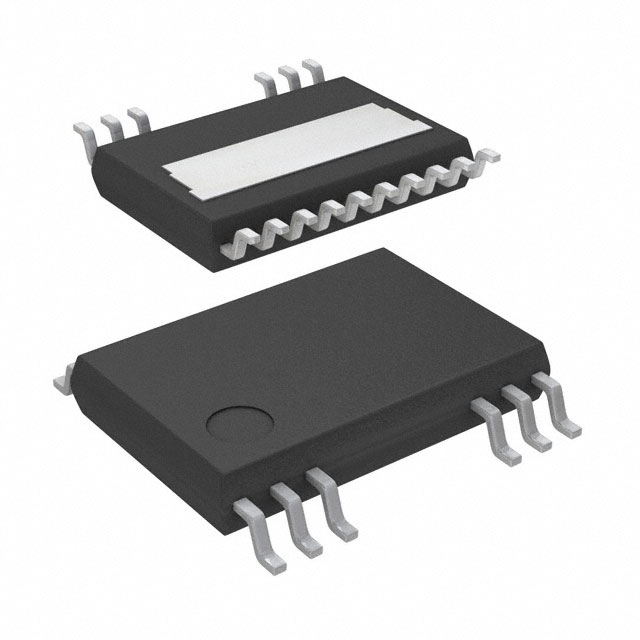

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LT8315HFE#PBF
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	IC REG CTRLR FLYBACK 20TSSOP
Datasheets:	LT8315HFE#PBF.pdf
Stock Condition	17689 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17689 pcs

Reference Price (In US Dollars)

1 pcs: $3.78

25 pcs: $2.522

100 pcs: $2.143

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.78

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LT8315HFE#PBF

Part Number	LT8315HFE#PBF	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC REG CTRLR FLYBACK 20TSSOP	Lead Free Status / RoHS Status
Quantity Available	17689 pcs	Data sheet	LT8315HFE#PBF.pdf
Voltage - Output (Min/Fixed)	-	Voltage - Output (Max)	-
Voltage - Input (Min)	18V	Voltage - Input (Max)	560V
Topology	Flyback	Synchronous Rectifier	No
Supplier Device Package	20-TSSOP-EP	Series	-
Packaging	Tube	Package / Case	20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad
Output Type	Fixed	Output Configuration	Positive, Isolation Capable
Operating Temperature	-40°C ~ 150°C (TJ)	Number of Outputs	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Function	Step-Down, Step-Up/Step-Down	Frequency - Switching	220Hz ~ 140kHz
Detailed Description	Flyback Switching Regulator IC Positive, Isolation Capable Fixed 1 Output 800mA 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad	Current - Output	800mA
Base Part Number	LT8315
