ADG859YRYZ-REEL7

ADI (Analog Devices, Inc.)

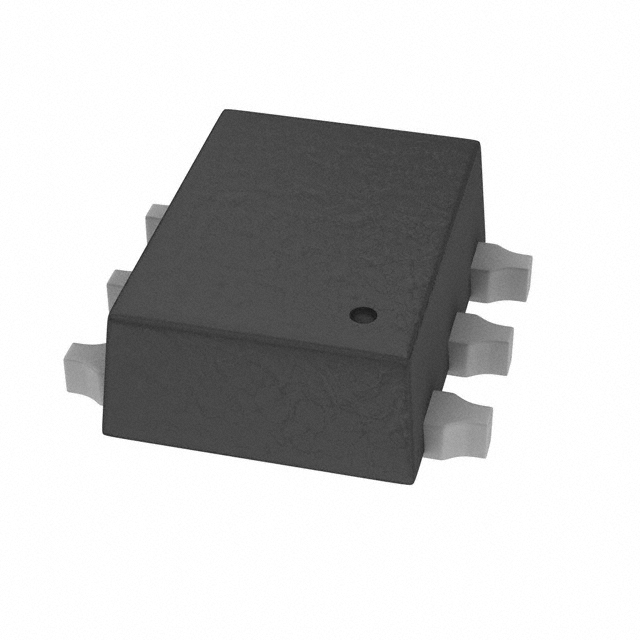

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADG859YRYZ-REEL7
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	IC SWITCH SPDT SOT66
Datasheets:	ADG859YRYZ-REEL7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5773 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5773 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADG859YRYZ-REEL7

Part Number	ADG859YRYZ-REEL7	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC SWITCH SPDT SOT66	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5773 pcs	Data sheet	ADG859YRYZ-REEL7.pdf
Voltage - Supply, Single (V+)	1.8 V ~ 5.5 V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	10ns, 6ns	Switch Circuit	SPDT
Supplier Device Package	SOT-66	Series	-
Packaging	Cut Tape (CT)	Package / Case	SOT-66
Other Names	ADG859YRYZ-REEL7CT	Operating Temperature	-40°C ~ 125°C (TA)
On-State Resistance (Max)	2.1 Ohm	Number of Circuits	1
Multiplexer/Demultiplexer Circuit	2:1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	1 Circuit IC Switch 2:1 2.1 Ohm SOT-66
Current - Leakage (IS(off)) (Max)	20pA (Typ)	Crosstalk	-78dB @ 100kHz
Charge Injection	13pC	Channel-to-Channel Matching (ΔRon)	10 mOhm
Channel Capacitance (CS(off), CD(off))	18pF	Base Part Number	ADG859
-3db Bandwidth	125MHz
