3M
| Part Number | 966266-6702-AR | Manufacturer | 3M |
|---|---|---|---|

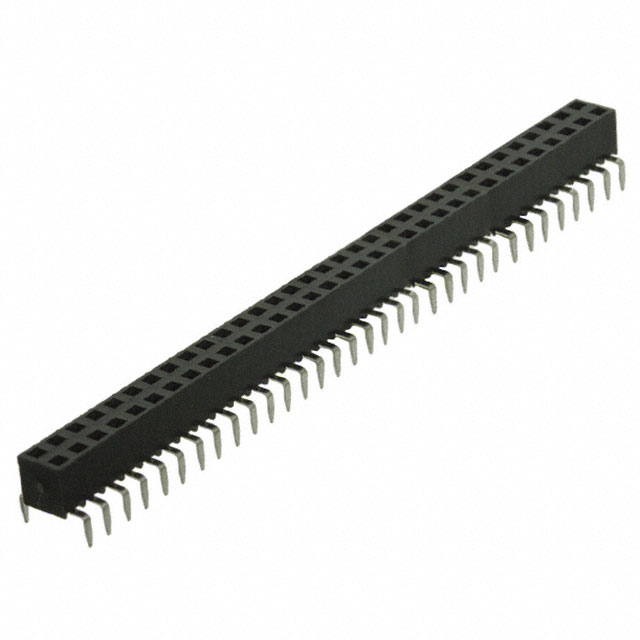

| Description | CONN SOCKET DL ENTRY 66POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5160 pcs | Data sheet | 966266-6702-AR.pdf |
| Voltage Rating | 1000VDC | Termination | Solder |
| Style | Board to Board | Series | 966 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | DE500057604 ZZ150355178 |
| Operating Temperature | -25°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 66 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.197" (5.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 66 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 40.0µin (1.02µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | - |
