929647-07-21-EU

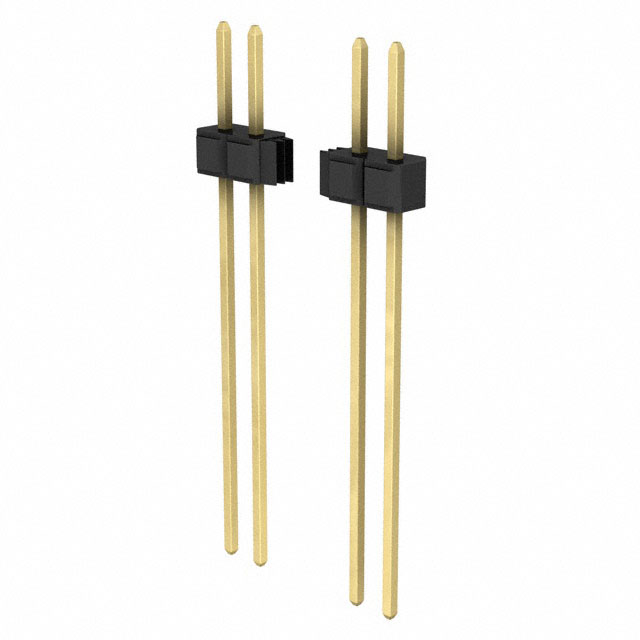

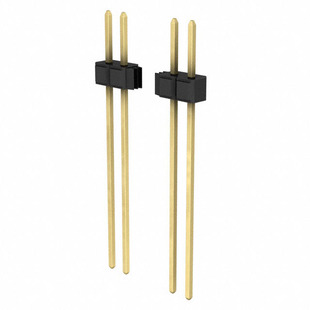

Image may be representation. See specifications for product details.

Product Overview

Part Number:	929647-07-21-EU
Manufacturer/Brand:	3M
Product description	CONN HEADER .100" SNGL STR 21POS
Datasheets:	1.929647-07-21-EU.pdf 2.929647-07-21-EU.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	42239 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 42239 pcs

Reference Price (In US Dollars)

1 pcs: $1.877

10 pcs: $1.68

100 pcs: $1.384

500 pcs: $1.094

1000 pcs: $0.939

5000 pcs: $0.857

10000 pcs: $0.824

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.877

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 929647-07-21-EU

Part Number	929647-07-21-EU	Manufacturer	3M
Description	CONN HEADER .100" SNGL STR 21POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	42239 pcs	Data sheet	1.929647-07-21-EU.pdf 2.929647-07-21-EU.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	929	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	1.245" (31.62mm)	Other Names	00076308065454 07630806545 3M156523-21 7630806545 76308065454 80001344748 929647-07-21-EU-ND
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	21
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Height	0.100" (2.54mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 21 position 0.100" (2.54mm)
Current Rating	2.5A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.910" (23.11mm)	Contact Length - Mating	0.235" (5.97mm)
Contact Finish Thickness - Post	10.0µin (0.25µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold	Contact Finish - Mating	Gold
Connector Type	Header, Breakaway	Applications	-
