3M
| Part Number | 8520-4500PL | Manufacturer | 3M |
|---|---|---|---|

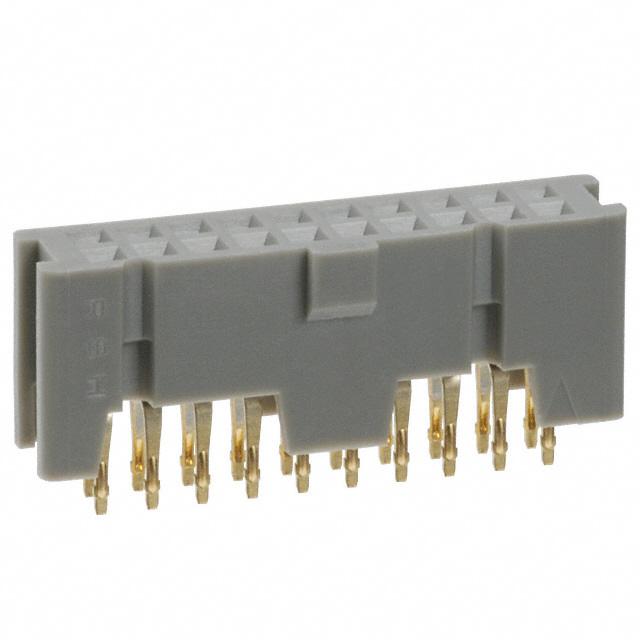

| Description | CONN SOCKET PCB VERT 20POS .1" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38515 pcs | Data sheet | 1.8520-4500PL.pdf2.8520-4500PL.pdf |
| Voltage Rating | 1000V | Termination | Kinked Pin, Solder |
| Style | Board to Board or Cable | Series | 8500 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 150318747 4547452262878 47452262878 54745226287 7000007577 85204500PL JE150318747 MSPV20 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.425" (10.80mm) |
| Insulation Color | Gray | Ingress Protection | - |
| Features | Polarizing Key | Fastening Type | Push-Pull |
| Detailed Description | 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.110" (2.79mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
