3M

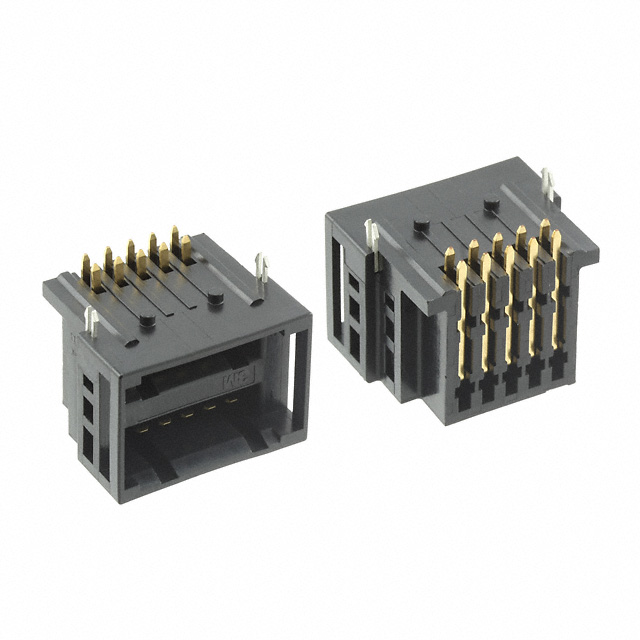

| Part Number | 35610-5253-A00PE | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER RA DUAL A POL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13936 pcs | Data sheet | 1.35610-5253-A00PE.pdf2.35610-5253-A00PE.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Power Clamp, 356 | Row Spacing - Mating | - |
| Pitch - Mating | 0.118" (3.00mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 04547452958818 356105253A00PE 3M9645 4547452958818 54745295881 7000090451 JE150382651 |
| Operating Temperature | -20°C ~ 75°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.720" (18.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Board Lock | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.118" (3.00mm) | Current Rating | - |
| Contact Type | Male Blade | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
