Embedded World: Embedded PCs get Sapphire 100 x 100mm AMD Ryzen motherboards
The processor chips have Radeon Vega graphics and a Zen CPU -Ryzen Embedded V1000 or R1000 processors.
“The versatile and effective design of these boards with low power compute and high-resolution multimedia display capability make them perfect for a wide variety of industry applications in the embedded space such as industrial PC, interactive digital signage, thin clients and POS terminals,” claimed Sapphire director Paul Smith.
The boards are BP-FP5 and NP-FPS, both with a 4in x 4in (~100 x 100mm) footprint and up to 32Gbyte of dual-channel DDR4 (2,400MHz) SODIMM memory as well as expansion interfaces including M.2 sockets for WiFi and SSD modules.
- BP-FP5 supports up to three independent 4K displays with two on-board DisplayPort interfaces and an HDMI 2.0, and it has five USB ports
- NP-FP5 supports up to two independent 4K displays with two on-board mini-DisplayPort interfaces, and has five USB ports
Thermal design power (TDP) for both is 25W.
Computers for the new boards
At Embedded World in Nuremberg today, mini-computer firm Simply NUC announced three families of long life computers based on the Sapphire boards (specification table below).

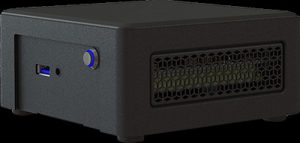

- Post Oak (see photo) based on the BP-FP5 motherboards with Ryzen Embedded V1605B and R1606G
- Red Oak based on the NP-FP5 motherboards Ryzen Embedded R1505G and R1305G
- Evergreen a more cost-effective solution based on the BP GX424CC-LC2 motherboard
“With Oak and Evergreen families we fill out our long-life mini roadmap, and our Sapphire partnership ensures a line-up that demonstrates performance levels at costs that won’t break your budget,” said Simply NUC founder and CEO Aaron Rowsell.
See the boards and computers on the Simply NUC stand (Hall 1 stand 2) at Embedded World
| Model | BP GX424CC-LC2 | NP-FP5V | BP-FP5V | |
| Form Factor | 4×4 | 4″ x 4″ | 4″ x 4″ | |
| CPU | AMD Embedded G-series GX-424CC SOC |
AMD Ryzen Embedded V1000/R1000 | AMD Ryzen Embedded V1000/R1000 | |
| TDP | 25W | Max. 25W | Max. 25W | |
| Cooler | Active/Passive | Active | Active | |
| System Memory | DDR3 SO-DIMM | DDR4 SO-DIMM (ECC/Non ECC) | DDR4 SO-DIMM (ECC/Non ECC) | |
| 1x DDR3-1866 SO-DIMM, Max. 16GB (Non-ECC) | 2x DDR4-Up to 2400 Max. 32GB (Right angle) | 2x DDR4-Up to 2400, Max. 32GB (Right angle) | ||
| External I/O Edge Connectors |
Displays | 2 x HDMI | 2 x mini-DP1.4 | 2 x DP1.4 + 1 x HDMI 2.0 |
| Ethernet | 1 x Gigabit Ethernet | 1 x RJ-45, 1GbE | 2x RJ-45, 1GbE | |
| COM | N/A | N/A | N/A | |
| Audio | Audio out Jack | Combo Mic In/Audio out Jack (Front) | Combo Mic In/Line out Jack (Front) | |
| USB | 2 x USB 2.0 2 x USB 3.0 |
2 x USB3.1 + 2 x USB2.0 (Front) | 1 x USB3.1(Front) + 2 x USB3.1 | |
| Internal I/O Headers |
COM | 1 x (2 x 5) header — RS232 | N/A | 1 x (2 x 5) header– RS232/422/485 (Jumperless) |
| Front Panel | 1 x (2 x 5) header | 1 x (2 x 5) header | 1 x (2 x5) header | |
| Audio | N/A | N/A | N/A | |
| USB | N/A | 1x (2 x 4) header supports 1 xUSB2.0 | 1x (2 x 5) header supports 2 xUSB2.0 | |
| Others | N/A | N/A | SATA PWR 1 x 4 pins | |
| Security | TPM | N/A | N/A | Infineon SLB9670 TPM2.0 on board |
| Chassis | N/A | N/A | N/A | |
| Power | DC 12-19V, 1 x DC Power Jack | 12 ~ 19V DC power jack | 12 ~ 19V DC power jack | |
| 2×1 power header | N/A | N/A | ||
| Expansion Slots | 1x M.2 (Key M,2280) with PCIe x4 and SATA for SSD | 1x M.2 (Key M, 2242/2280) with PCIe x4 and SATA for SSD | 1x M.2 (Key M, 2242/2260) with PCIe x4 and SATA for SSD | |
| 1x M.2 (Key E, 2230) with PCIe x1 and USB2.0 for Wireless | 1x M.2 (Key E, 2230) with PCIe x1 and USB2.0 for Wireless | 1x M.2 (Key E, 2230) with PCIe x1 and USB2.0 for Wireless | ||
| N/A | N/A | 1 x SATA3 (6.0 Gb/s) + 1 x SATA Power | ||
Founded in 2001, Sapphire is headquartered in Hong Kong.
Simply NUC is based in Texas
