TY-142P

Triad Magnetics

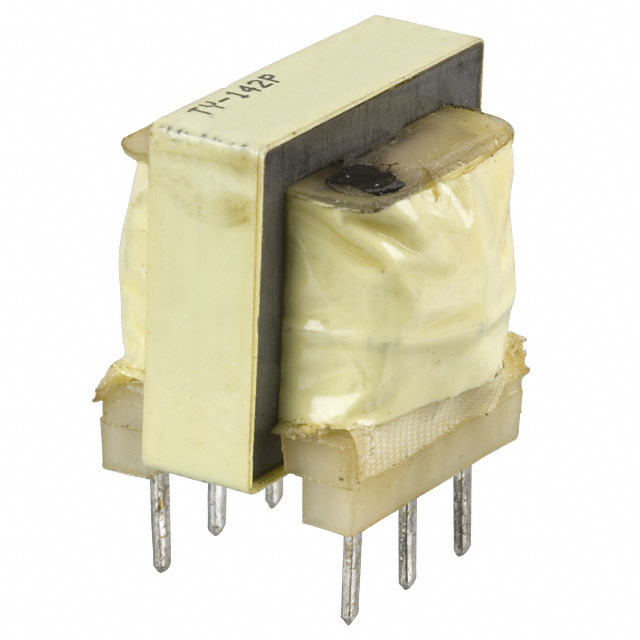

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TY-142P
Manufacturer/Brand:	Triad Magnetics
Product description	TRANSF 10K AUDIO CTAP/2K CTAP
Datasheets:	TY-142P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	27954 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 27954 pcs

Reference Price (In US Dollars)

1 pcs: $2.021

10 pcs: $1.536

25 pcs: $1.496

50 pcs: $1.375

100 pcs: $1.294

250 pcs: $1.253

500 pcs: $1.213

1000 pcs: $1.172

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.021

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TY-142P

Part Number	TY-142P	Manufacturer	Triad Magnetics
Description	TRANSF 10K AUDIO CTAP/2K CTAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27954 pcs	Data sheet	TY-142P.pdf
Weight	0.032 lb (14.51g)	Voltage - Isolation	1500V
Turns Ratio - Primary:Secondary	2.24:1	Transformer Type	Data/Voice Coupling
Termination Style	PC Pin	Size / Dimension	0.812" L x 0.700" W (20.62mm x 17.78mm)
Series	TY	Return Loss	26dB
Power Level	100mW	Packaging	Bulk
Other Names	10610 237-1119 TY142P	Operating Temperature	0°C ~ 105°C
Mounting Type	Through Hole	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	1.5dB
Impedance - Secondary (Ohms)	2kCT	Impedance - Primary (Ohms)	10kCT
Height - Seated (Max)	0.740" (18.80mm)	Frequency Response	±2dB
Frequency Range	200Hz ~ 15kHz	DC Resistance (DCR) - Secondary	217 Ohm
DC Resistance (DCR) - Primary	750 Ohm	Approvals	-
