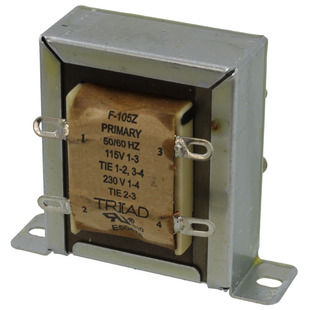

F-105Z

Triad Magnetics

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-105Z
Manufacturer/Brand:	Triad Magnetics
Product description	POWER XFMR CHASSIS MOUNT W/LUGS
Datasheets:	F-105Z.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10271 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10271 pcs

Reference Price (In US Dollars)

1 pcs: $5.98

10 pcs: $4.556

25 pcs: $4.20

50 pcs: $4.058

100 pcs: $3.987

250 pcs: $3.844

500 pcs: $3.702

1000 pcs: $3.559

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.98

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-105Z

Part Number	F-105Z	Manufacturer	Triad Magnetics
Description	POWER XFMR CHASSIS MOUNT W/LUGS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10271 pcs	Data sheet	F-105Z.pdf
Weight	1 lb (453.59g)	Voltage - Secondary (Full Load)	Parallel 6V, Series 12V
Voltage - Primary	115V, 230V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	Solder Lug
Size / Dimension	73.02mm L x 44.45mm W	Series	Control Transformers
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	12 VA	Other Names	237-1895
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	60.32mm	Current - Output (Max)	Parallel 2A, Series 1A
Center Tap	No
