HE12-1A69-02

Standex-Meder Electronics

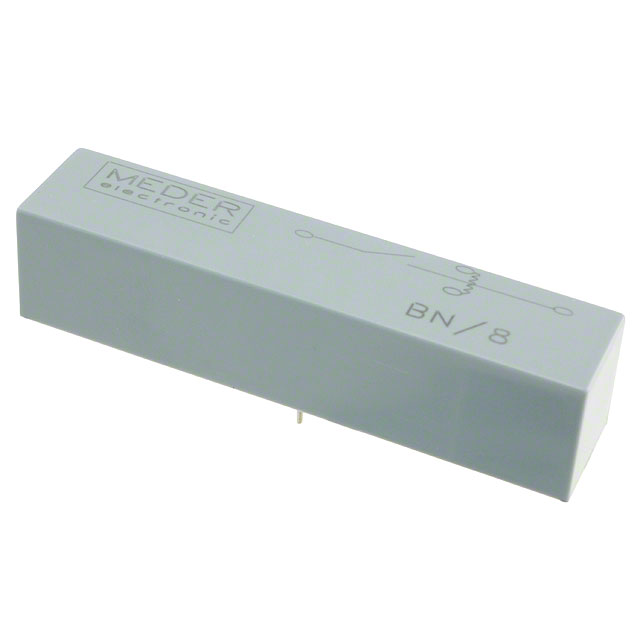

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HE12-1A69-02
Manufacturer/Brand:	Standex-Meder Electronics
Product description	RELAY REED SPST 3A 12V
Datasheets:	1.HE12-1A69-02.pdf 2.HE12-1A69-02.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2764 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2764 pcs

Reference Price (In US Dollars)

1 pcs: $17.656

10 pcs: $17.401

25 pcs: $16.89

50 pcs: $16.634

100 pcs: $15.354

250 pcs: $14.075

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$17.656

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HE12-1A69-02

Part Number	HE12-1A69-02	Manufacturer	Standex-Meder Electronics
Description	RELAY REED SPST 3A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2764 pcs	Data sheet	1.HE12-1A69-02.pdf 2.HE12-1A69-02.pdf
Turn On Voltage (Max)	9 VDC	Turn Off Voltage (Min)	1 VDC
Termination Style	PC Pin	Switching Voltage	10000VAC, 10000VDC - Max
Series	HE	Release Time	1.5ms
Packaging	Bulk	Other Names	374-1205 HE121A6902
Operating Temperature	-20°C ~ 70°C	Operate Time	3ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Contact Rating (Current)	3A
Contact Material	-	Contact Form	SPST-NO (1 Form A)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	250 Ohms	Coil Power	575 mW
Coil Current	46.2mA
