BAT54SWFILMY

STMicroelectronics

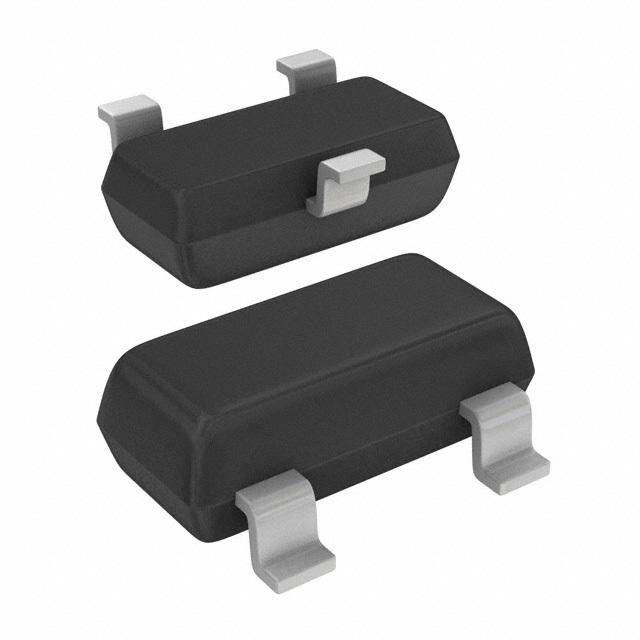

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BAT54SWFILMY
Manufacturer/Brand:	STMicroelectronics
Product description	DIODE ARRAY
Datasheets:	1.BAT54SWFILMY.pdf 2.BAT54SWFILMY.pdf 3.BAT54SWFILMY.pdf 4.BAT54SWFILMY.pdf
Stock Condition	1496829 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1496829 pcs

Reference Price (In US Dollars)

3000 pcs: $0.025

6000 pcs: $0.023

15000 pcs: $0.02

30000 pcs: $0.019

75000 pcs: $0.017

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.025

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BAT54SWFILMY

Part Number	BAT54SWFILMY	Manufacturer	STMicroelectronics
Description	DIODE ARRAY	Lead Free Status / RoHS Status
Quantity Available	1496829 pcs	Data sheet	1.BAT54SWFILMY.pdf 2.BAT54SWFILMY.pdf 3.BAT54SWFILMY.pdf 4.BAT54SWFILMY.pdf
Voltage - Forward (Vf) (Max) @ If	900mV @ 100mA	Voltage - DC Reverse (Vr) (Max)	40V
Supplier Device Package	SOT-323-3	Speed	Fast Recovery = 200mA (Io)
Series	Automotive, AEC-Q101, ECOPACK®2	Reverse Recovery Time (trr)	5ns
Packaging	Tape & Reel (TR)	Package / Case	SC-70, SOT-323
Other Names	497-17757-2 BAT54SWFILMY-ND	Operating Temperature - Junction	-40°C ~ 150°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Diode Type	Schottky	Diode Configuration	1 Pair Series Connection
Detailed Description	Diode Array 1 Pair Series Connection Schottky 40V 300mA (DC) Surface Mount SC-70, SOT-323	Current - Reverse Leakage @ Vr	1µA @ 30V
Current - Average Rectified (Io) (per Diode)	300mA (DC)
