PA0368.050NLT

Pulse Electronics Corporation

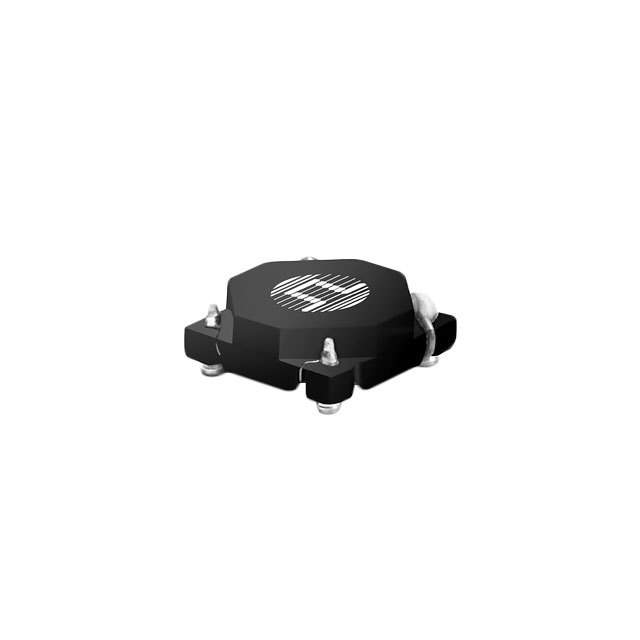

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA0368.050NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR 1:50 SMD
Datasheets:	PA0368.050NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	100348 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 100348 pcs

Reference Price (In US Dollars)

1100 pcs: $0.40

5500 pcs: $0.367

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.40

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA0368.050NLT

Part Number	PA0368.050NLT	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 1:50 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	100348 pcs	Data sheet	PA0368.050NLT.pdf
Weight	-	Type	Invasive
Turns Ratio - Primary:Secondary	1:50	Termination Style	-
Size / Dimension	0.325" L x 0.325" W (8.25mm x 8.25mm)	Series	PA0368NL
Ratings	-	Packaging	Tape & Reel (TR)
Other Names	553-3809-2 PA0368.050NLT-ND	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	1.7mH
Height - Seated (Max)	0.134" (3.40mm)	Frequency Range	50kHz ~ 1MHz
Energy Time (E.T.)	-	Detailed Description	1:50 Current Sense Transformer 50kHz ~ 1MHz 4 mOhm Primary, 900 mOhm Secondary 1.7mH Surface Mount
DC Resistance (DCR)	4 mOhm Primary, 900 mOhm Secondary	Current Ratio	-
